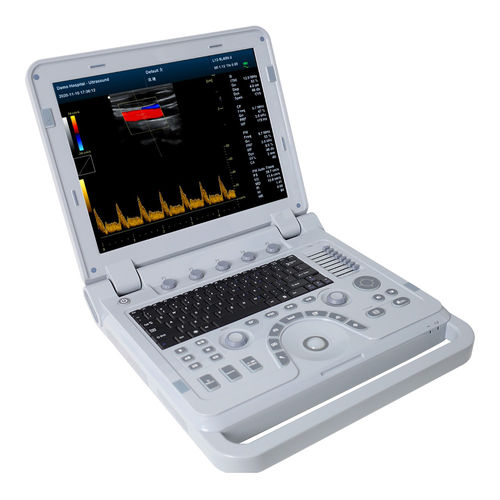

Portable ultrasound system CMS1700B

for multipurpose ultrasound imagingfor gynecological and obstetric ultrasound imagingfor abdominal and pelvic ultrasound imaging

CMS1700B is a color Doppler Ultrasound diagnostic device with high resolution, which has a powerful computer processing platform. The system is mainly suitable for the diagnosis of abdomen, heart, peripheral vessels, breast, obstetrics and gynecology, small organs, urology, muscle, incretion and pediatrics, etc. It adopts Doppler ultrasound imaging technology, advanced image processing technology (such as digital beam-forming technology, tissue harmonic imaging (THI), image speckle suppression, etc.) and digital integrated graphic management system, and the internal professional measurement software package can fully meet the clinic diagnostic requirement. Features 1) Color Doppler (CF), color power Doppler imaging (PDI). 2) Pulse spectrum Doppler (PW), 3) Continuous wave Doppler (CW) . 4) B+CF (Dual Images) 5) B+CF/PDI/DPDI+PW (Triplex) 6) 3D, 4D imaging.(optional) 7) Superior in phased array cardiac imaging technology, complete in software package of cardiac measurement function. 8) Convex array extended imaging. 9) Linear array deflection/ trapezoid imaging. 10) Anatomic M-mode imaging.(optional) 11) Space compounding imaging 12) Tissue harmonic imaging (THI). 13) Wide scene imaging.(optional) Performance 1) Display depth: 300 mm 2) Extended interface: VIDEO interface, S-VIDEO interface, RJ-45 interface, USB interface, VGA interface. Safety ● Type of protection against electric shock: class Ⅰ equipment Degree of protection against electric shock: type BF applied part ● Operating voltage: AC 100 V~240 V ● Operating frequency: 50 Hz/60 Hz ● Power consumption: ≤ 100 VA
