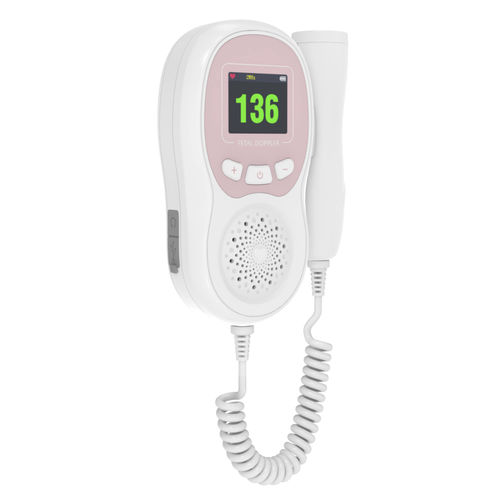

Fetal doppler CONTEC10CL

pocketwith heart rate monitor

Introduction CONTEC10CL Pocket Fetal Doppler adopts Doppler technology in designing, it is a hand-held fetal heart rate detection device. Measured FHR value and waveform are displayed on the LCD screen. With easy and convenient operation, it can be used in hospital, clinic and home for daily self-check by pregnant woman, realizing early monitoring and care for life. Function Beautiful appearance, easy to operate Magnetic probe, compact design, convenient to use Digits/Curve display Battery level indication Auto shutdown after no signal inputting for 60s High sensitive Doppler probe, fetal heart sound can be heard clearly for pregnancy more than 12 weeks Two sound output modes: built-in speaker and external headphone Performance Safety classification: internally powered equipment, type CF applied part Display: 1.77＂ LCD screen FHR measurement and display range: 50 BPM ～ 240 BPM (BPM: beats per minute) Resolution: 1 BPM Accuracy: ± 2 BPM Rated working voltage: DC3 V Battery type: 3.7V lithium battery Enclosure protection class：IP22 Probe Nominal Frequency: 3.0 MHz Working Frequency: 3.0 MHz ± 10％ Negative Peak Sound Pressure: p_ ＜ 1 MPa Output Beam Intensity: Iob ＜ 20 mW/cm2 Spatial-peak Temporal-average Derived Intensity: Ispta ＜ 100 mW/cm2 Ultrasonic Output Power: P ＜ 20 mW Working Mode: Continuous wave Doppler Effective Radiating Area of Transducer: ≤ 208 mm2 Accessories User Manual 1pc Physical characteristic ◆Dimension: 157mm(L) × 106 mm(W) × 34 mm(H) ◆Weight: about 300 g(with batteries)
