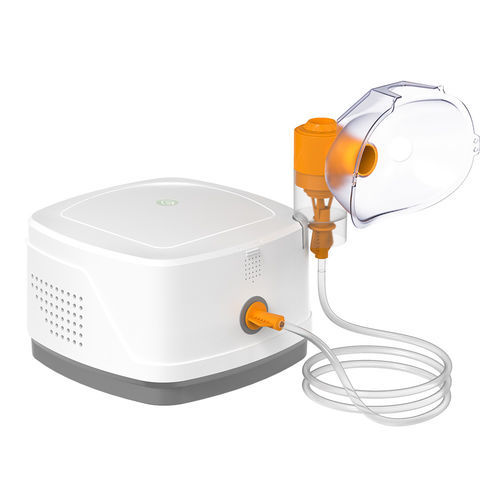

Electro-pneumatic nebulizer NE-J01

for general purposescompacttable

1.Introduction The compressor nebulizer drives the liquid medication to spray to small panel by the high-speed air flow produced by the compressor, then the liquid medication will change into atomized particles which are spurted out by the outlet. The tiny medication particles easily arrive lung and bronchus by breath, which are directly absorbed by human body. It is applicable for use in hospital, clinique and family. 2.Function The compressor nebulizer can convert medication to tiny particles, which can be easily inhaled into respiratory system along with human breath to cure respiratory diseases such as acute and chronic tracheitis, bronchitis, sore throat and asthma, etc. 3.Specification Power supply: AC220V, 50Hz Input power: ＜150VA Nebulization rate: >0.15mL/min Medication residue: ≤ 0.7mL Volume for atomizing cup: 8mL Appropriate medication range: 2~8mL Noise: ≤ 65dB Gas flow: >10L/min Max pressure: 280-450KPa Type of protection against electric shock: Class Ⅱ Degree of protection against electric shock: Type B applied part Degree of waterproof and dustproof: IP22
