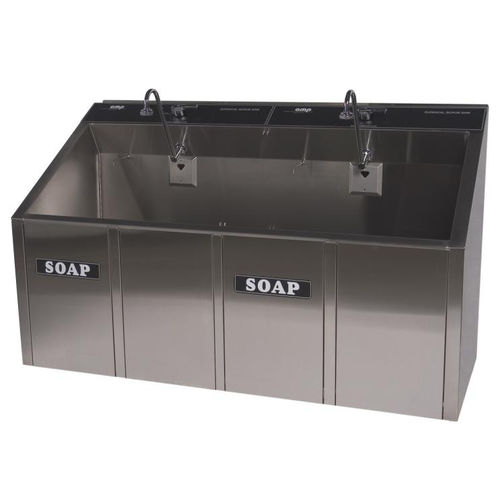

Electronic Surgical Scrub Sinks (Infrared)
Infrared Sensor Controlled Water Flow Tempered water flows for as long as the operator stays within the sensor’s range.
Touch free Sensor Controlled Soap Option Available
32” wide x 27 ¼” deep x 38” high (one bay)
62″-7/8” wide x 27″ ¼” deep x 38” high (two bays)
94-1/8” wide x 27 ¼” deep x 38” high (three bays)
120” wide x 27 ¼” deep x 38” high (four bays)
28” wide x 27 1⁄4” deep x 38” high (custom one bay)
48” wide x 27 1⁄4” deep x 38” high (custom two bay)
79” wide x 27 1⁄4” deep x 38” high (custom three bay)
1, 2, 3 and 4 station scrub sink sizes
Stainless Steel Construction of medical grade 304 Stainless Steel
Removable Plexiglass Splash screen divider Bay Panels standard
Adjustable Thermostatic Mixing Valve
Available in One, Two, or Three, Bay Sizes
Extra small scrub sink models available in 28 inches and 48 inches
Automatic Timer, Knee-operated or Electronic Infra-Red sensor
Knee Operated Soap Dispenser Option
Touch-free Electronic Infra-Red Sensor Operated Soap Dispenser Option
Digital Timer, Eyewash Options
Pedestal Base or Chair Carrier wall mounted
Optional Wall Mounted Stainless Steel Storage Shelf Assembly to fit over Scrub Sinks
Optional Emergency Eyewash – meets ANSI Z358.1-2014 safety requirement
Light Module with Florescent Light Assembly to fit under Storage Shelf
Custom Sizes Available
Anti-Splash Tub with deep basins
ADA compliant scrub sink available
Optional Laminar Flow Faucet Head – Provides splash free laminar stream
Meets stringent requirements and are approved by Massachusetts Board of Registration of plumbers and Gas Fitters
