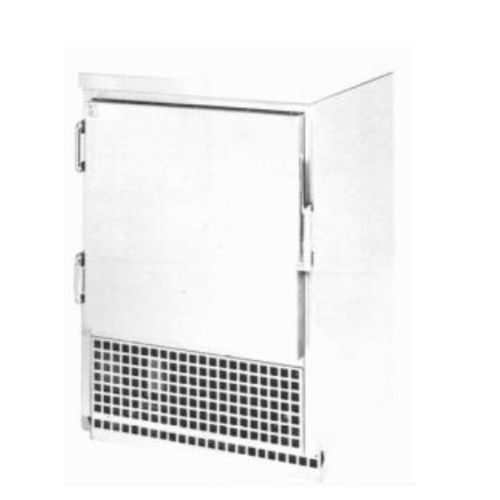

Undercounter refrigerator 24

laboratoryhospitalcabinet

CMP hospital under counter Refrigerators are high quality stainless steel refrigeration units designed for the storage and functional requirements of the hospital and emergency room environment and have evolved into the industry standard for this application. Full-size Models also available Choice of Refrigerator or Freezer Stainless Steel Construction 2-Inch Thick Insulation Adjustable Shelves Width: 24″ (608 mm) Depth: 24″ (608 mm) Height: 34½ ” (876 mm) Connections required are: ½” (13 mm) hot water, ½” (13 mm) cold water, and 1½” (38 mm) waste. Standard electrical requirements: with hot plates-110/208 vac or 120/240 vac, single-phase, 60 Hz, 20 amperes, three-wire; without hot plates-same vac, but single-phase, 60 Hz, 10 amperes. All servicing is performed from the front of the unit. CMP Model 24 Under-Counter Refrigerator or Freezer is constructed of type 304 stainless steel with No. 4 finish. Welding is done by the Heliarc process. All exposed welding is ground and polished to match the No. 4 finish. The entire unit bears the Underwriters Laboratories, Inc. listing seal. CMP Model 24 Under-Counter Refrigerator is completely insulated with 2” thick fiberglass insulation. The unit also contains two chrome-plated wire shelves that are adjustable on ½ “ centers to optimum height. The door seal is made of long-life, extruded vinyl latex. Also, bakelite breaker strips are installed where interior surfaces join together. Continuous perimeter heating that is concealed behind the front mullion eliminates condensation.
