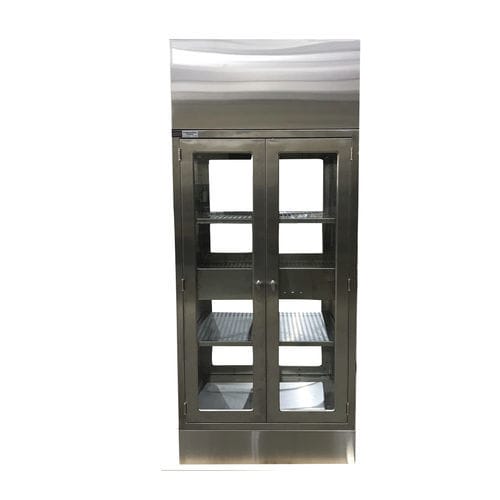

Security cabinet SC2 series

transferstoragehospital

HEPA Pass Through Cabinet with a fan/filter module Option- is now available in 29″ deep models from Continental Metal Products. This new 99.99% efficient HEPA filter option in CMP’s Wall Mounted Pass Through Cabinets, provides for the efficient transfer of supplies and drugs in and out of the cleanroom environment. CMP’s HEPA Pass Through Cabinets exceeds the U.S. Department of Energy High Energy Particle Arrestance (HEPA) standard by removing at least 99.99 percent of airborne particles 0.3 micrometers (µm) in diameter. Pass Throughs with Recirculating HEPA Filtration • Material: Type 304 Stainless Steel • Chamber Width: 36″, 48″ • Chamber Depth: 29″, • Chamber Height: 60 , 72″ HEPA Pass Through Cabinet Models 36″ H x 76-1/2″ H x 29″ D 48″ H x 76-1/2″ H x 29″ D 36″ H x 88-1/2″ H x 29″ D 48″ H x 88-1/2″ H x 29″ D 24″H x 40″H x 24″D 24″H x 40″H x 18″D 99.99% efficient HEPA filter 30% ASHRAE pleated type pre-filter Safety switch which disables the unit while servicing Variable speed control for airflow range from 250 – 400 CFM Stainless Steel Housing Filter replaceable from room side Energy-efficient motor: Operating amps low as 1.6 for 115 volt Motor and voltage options are 208-230 (50/60 hz) and 277 (60 hz) Stainless steel frame and are protected with a stainless steel round perforated grille on the downstream side. A motorized HEPA filter unit inside the Pass Thru Cabinet recirculates air through the cabinet’s inner sides. Like all CMP Wall Mounted Pass Thrus, it has a heavy-duty welded stainless steel shell. The interior sides are durable and easy to clean. Doors feature a generous sized, tempered safety glass window for maximum visibility.
