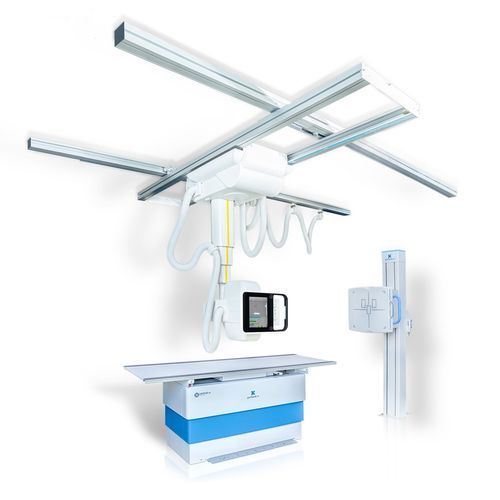

Radiography system C200

digitalfor multipurpose radiographywith table

The C200 ceiling-mounted system increases examination precision and throughput with its auto-tracking functionality between the tube assembly and, respectively, the wall stand and the table receptor. KEY FEATURES 1-way (optional 2-way) vertical auto-tracking between tube assembly and wall stand receptor (receptor: master, tube: slave) 2-way vertical auto-tracking between tube assembly and table receptor (receptor: master, tube: slave) 1-way auto-centering between tube assembly and table receptor (tube: master, receptor: slave) motorized vertical movement of X-ray tube assembly (with manual override) manual horizontal movement of tube stand manual transverse movement of tube stand manual tube rotation on the horizontal axis manual tube rotation on the vertical axis manual vertical movement of wall stand motorized Phoenix 2 elevating radiographic table motorized table receptor auto-centering (with manual override) longitudinal and vertical SID measurement optional manual or motorized receptor tilting for wall stand
