Automatic electrolyte analyzer Convergys®

pHNa+K+

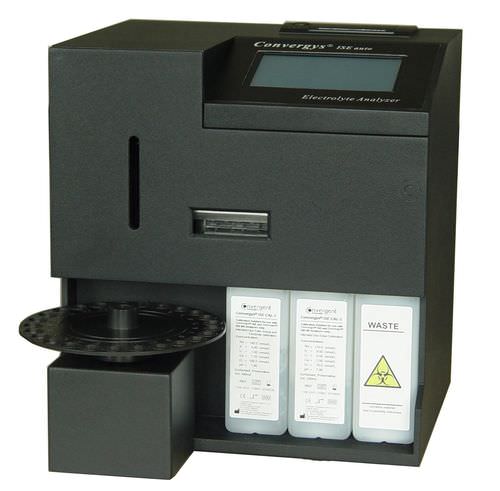

The Convergys® ISE Auto Electrolyte Analyzer is based on the advanced ion selective electrode (ISE) technology. It measures K+, Na+, Cl–, Ca++, Li+ , pH and TCO2 (optional) concentrations in whole Blood, Serum, Plasma, Urine or CSF. The Analyzer is designed, developed and manufactured in Germany. It has a very compact design and the only interface is an extremely user friendly LCD touch panel with a logically assigned menu structure. The Analyzer is equipped with a fully automatic sample aspiration probe. The samples are aspirated from sample cups which are stored in a sample rotor with 25 sample positions located underneath the sample aspiration probe. Position 0 is used for calibration, emergency samples, rinsing and sensor testing. The Analyzer can store up to 500 tests and 31 tests for each of the 2 QC levels. The Analyzer has a separate QC database option for automatic calculation of calibration factors of each ion. Main Features Measured Parameters: K+, Na+, Cl–, Ca++, Li+, pH and TCO2 (optional) Autosampler for 24 samples and 1 emergency sample 100 μl sample volume of whole Blood, Serum, Plasma, Urine or CSF 60 tests per hour throughput Optional TCO2 measuring module Built-in thermal printer Automatic two-point calibration 2 level QC management and integrated statistical analysis 240×128 dots touch LCD Large data storage for 500 results Integrated air-liquid-air-liquid rinsing mode to avoid carry-over
