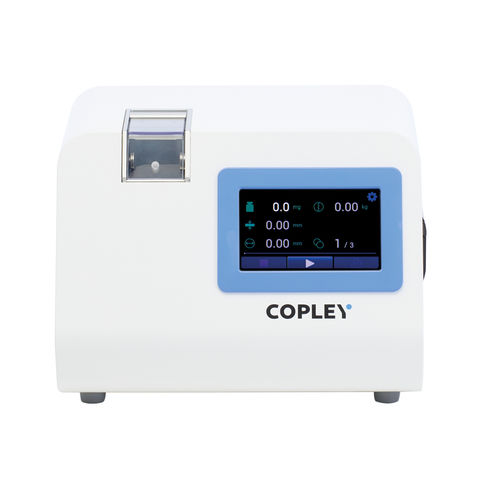

Combining the economy of a simple, easy to use hardness tester with the accuracy of microprocessor-controlled data collection, the compact TBF 100i hardness tester delivers precise tablet hardness and diameter measurements.
Offering high tablet throughput, the intuitive touchscreen user interface of
the TBF 100i streamlines test set-up procedures for users, whilst the built-in
data processor provides analysts with tablet breaking force statistical
analyses at the touch of a button. Tablet thickness and weight can also be recorded (optional).
Max. Tablet Diameter:
36 mm
Force Range:
0 – 490 N
Statistics Reporting:
Yes
Batch Testing:
Yes
Portable:
No
Unit Dimensions (w x d x h):
283 x 237 x 208 mm
Ph. Eur. and USP Compliant
Choice of breaking force measurement units
Small unit footprint saves previous benchtop space
Option: automated entry of tablet weight & thickness data
Intuitive touchscreen control to simplify operation
Force application: constant speed
Extensive data reporting output options: RS 232 and USB B
