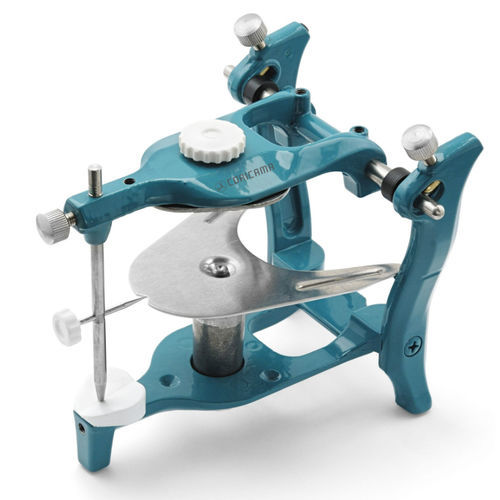

Semi-adjustable dental articulator 835100

with magnetic mounting system

To simulate the movement of a patient´s upper and lower jaws and onto which maxillary and mandibular casts or models are attached according to a pre-recorded intermaxillary relation. It simulates all or part of the mandibular movements and can be used for, e.g., examination, diagnosis, or for the construction of dental appliances: removable prosthetic appliances (dentures), fixed prostheses (crowns, bridges, inlays and onlays) and orthodontic appliances. Manufactured in cast aluminium, about 400gr in weight. Projected and realized to ensure the largest visual field on the lingual surfaces as well as maintaining complete stability of the upper frame also at full open position: coiled springs facilitate the return to starting aligned position. Technical details: • Opening 125° • Fixed condylar inclination of 30° • Intercondylar distance of 110mm • Incisal base inclination of 10° • Bennet angle of 7° • Distance between the mounting plates 85mm • Spare parts available upon request
