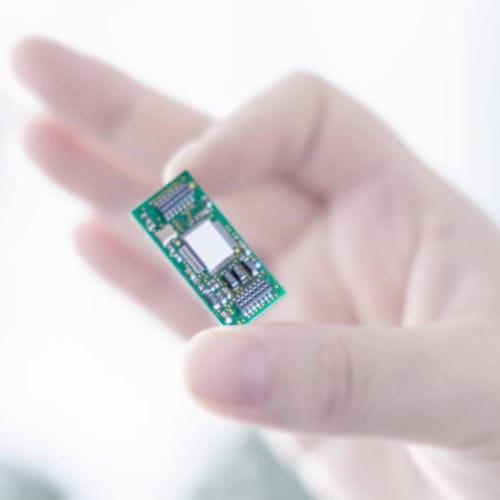

SpO2 module ChipOx

telemonitoring

Compact and power-saving pulse oximetry module An important vital parameter in common monitoring applications: the oxygen saturation in the arterial blood. If not enough oxygen is supplied to the blood, this can quickly become dangerous for patients. ChipOx measures SpO2 and pulse rate continuously and reliably. Whether it be finger clip or soft tip: the miniaturized module weighs only 1.9 g, meaning it can be easily integrated into many sensor variants.  Continuous and accurate SpO2– and pulse rate measurement Functions - Output of filtered and real-time raw plethysmogram - Various measuring modes for adaptation to ambient conditions - Warning output in case of poor signal quality and reliability ADVANTAGES - Flexible and easy combination with a wide range of sensor types - Safe, convenient patient monitoring - Low energy and space requirements The technology Non-invasive pulse oximetry The SpO2 measurement is based on the difference in the spectral characteristics of oxygenated and deoxygenated hemoglobin. In this regard, two different wavelengths in the range of 660 nm and 905 nm are measured using transmission sensors. Use of a wide range of measurement parameters Recording of SpO2 values between 45 and 100%. Recording the pulse rate from 20 to 300 bpm Status bits, quality parameters and pulsation strength provide feedback on the reliability and quality of the measured values at any time.
