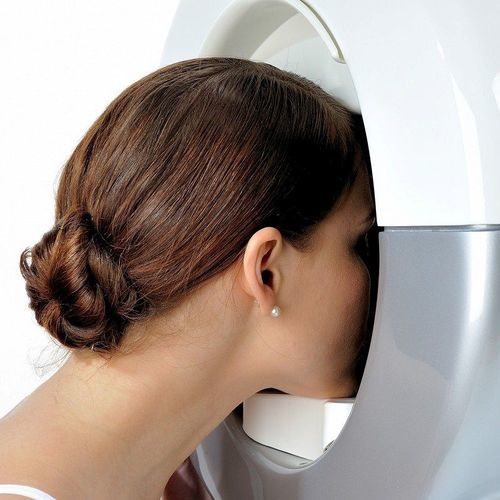

Skin topography system VisioFace® RD

The VisioFace® RD and its software have been developed together with our partners in France at Monaderm to take highest resolution full face photos under standardized conditions for the documentation of treatments and studies. It is focused on simple organisation of the photos and detailed comparisons. Stable, long lasting and extremely homogeneous illumination of the face by 210 white light LEDs, without developing heat and a high resolution reflex camera integrated (18 mega pixel) with a special objective allow to take detailed facial photos. Removable head and chin rest for the exact position for a frontal image and images taken sidewise. Technical Data Dimensions: 54 x 50 x 44 cm, Weight: approx. 11.4 kg (with accessories 13.8 kg) Illumination: 210 white light LEDs, Camera: Canon EOS series, autofocus, images can be saved as jpg (recommended) or png, Objective: EF 20 mm/2.8, USM: focal length 20 mm, filter diameter 72 mm, focus by ultrasound, Power Supply: external 100-250 V, 47-63 Hz, DC 12V/4A, Port: USB 2.0, type B connector Computer: Windows® 10/11, performance must meet system requirements
