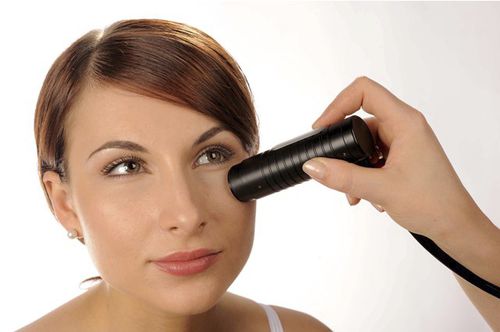

Skin elasticity analysis system Cutometer® Dual MPA 580

For more than 35 years elasticity measurements with the Cutometer® have been recognized as standard in cosmetology and have been used to support the latest discoveries in this field. Due to its precision and ease of use compared to other elasticity measurement methods, the Cutometer® is mentioned in most studies on this subject worldwide. The software MPA CTplus simplifies the work and offers additional benefits. Measurement Principle The measuring principle of the Cutometer® is based on the suction method, where negative pressure deforms the skin mechanically. The pressure is created in the device and draws the skin into the aperture of the probe and after a defined time, releases it again. Inside the probe, the penetration depth is determined Cutometer principle eby a non-contact optical measuring system. This optical measuring system consists of a light source and a light receptor, as well as two prisms facing each other, which project the light from transmitter to receptor. The light intensity varies due to the penetration depth of the skin. The resistance of the skin to the negative pressure (firmness) and its ability to return into its original position (elasticity) are displayed as curves (penetration depth in mm/time) in real time during the measurement. From these curves a variety of interesting measurement parameters can be calculated related to elastic and visco-elastic properties of skin surface and skin aging. The typical shape of a curve of human skin is based on the different forces of elastin and collagen in the skin.
