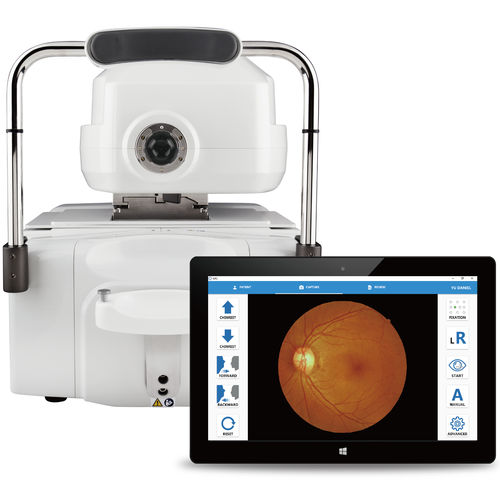

Non-mydriatic retinal camera NFC-600

tabletop

The first retinal camera that users are able to do selfies! With automatic 3D tracking and focusing, the image capture can be done by just pressing a button. The compact design makes it easy to carry and set up NFC-600. Simple USB interface offters flexible connectivity to operate the fundus camera. The Automated retina camera with portability, NFC-600 is a fully auto 3D tracking, non-mydratic, fast, and easy to carry retinal imaging system. It is designed to provide retina image of the eye as an aid to clinician in diagnosis of diabetic retinopathy, AMD, glaucoma, and other retinal diseases. Selectable Fixation Targets and Montage Ten internal fixation targets are selectable. The disc, fovea, macular,or other peripheral retina areas can be captured by selecting the specified fixation. Type - Digital non-mydriatic retina camera Type of photography - Color, digital red-free Image format - JPEG, PNG, Dicom (optional) Field of view - 45 degrees Minimal pupil size - 4.0 mm Working distance - 25 mm Focus adjustment range - -15D to +10D (w/o compensation lens) -30D to -10D or +5D to +30D (with compensation lens) Flash intensity - 10 levels, can be set manually Light source - Observation light source : infrared LED Flash light source : White LED Montage - Built-in Montage up to 3 images Image - 12 MP Eye fixation - Internal ten points Alignment - Automatic 3D tracking Chinrest movement - Motorized PC connection - USB 2.0 Power supply - AC 100V to 240V, 50/60Hz, auto selected Operating Environment - Temperature : 10℃ to 35℃
