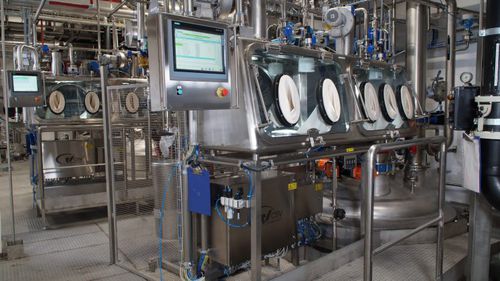

Reactor loading system

DIT® reactor charging with double chamber for HPAPI production is the safest way to charge drums, even of different diameters, without changing any part of the equipment. The DIT® dual-chamber configuration allows for a unidirectional handling flow of drums and powders, from clean to dirty. This causes the charging chamber to be segregated from the pre-chamber and drum, which is never exposed to potential contaminants. A very high level of containment is thus achieved. Bag handling inside the isolator is designed to be unhindered, thanks to the inflatable seal that allows the metal profile usually used around the inner door to be eliminated. In this way, the floor of the two chambers is clear of clutter and bags can be conveniently moved without having to overcome obstacles. DIT® reactor charging main features: ●Pre-chamber equipped with 2 glove ports and 2 gloves ●Fully automated drum handling via DIT ® system (double iris) ●Universal iris size to fit all drum diameters and heights ●Flat interior workbench with no constraints between chambers thanks to the door equipped with an inflatable seal ●Reactor charging chamber equipped with 3 elliptical glove ports and 3 gloves ●Frontal panel fully openable (150° at least) and equipped with proxy safety switches and safety interlocks ●Chambers operating in negative pressure assuring a pressure cascade, and purged by Nitrogen ●An O2% transmitter interlocks transfer and charging operations ●Negative pressure realized by variable speed fan, one for each chamber ●External LED lamps placed on the top through a clamped sight glass ●Extraction passing through HEPA (H14) filters in push-push safe change configuration
