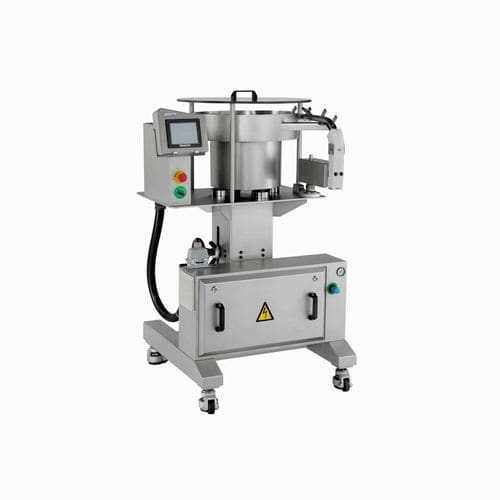

Desiccator 1111

For desiccant insertion in bottles, CVC 1111 is specially designed to meet the requirements in pharmaceutical and nutraceutical industries. PLC controlled fully automatic operation. 6" Touch Screen Terminal. Employs reliable electronic and pneumatic components. Stacked with alarm lamp post (optional). Multiple desiccant inserting without additional change parts. Programmable settings for Insertion of 1- 5 desiccants per container. Front Safety guard with automatic machine stop when opened. All contact parts in FDA approved materials. Stainless steel and aluminum construction, meet cGMP requirements. Canister Type Desiccant discharge chute with insertion gate immediately close to the bottle opening, for a positive insertion. Precision photoelectric sensors for accurate operation. A stainless steel holding bracket Bowl Feeder Size: 500 - 600 mm (in diameter) Max. Bowl Feeding speed is up to 120 insertions per minute. Vibratory Bowl Feeder Height is adjustable by a handle wheel which is mounted on the back side of the holding bracket. With one sized vibratory bowl feeder, canister desiccant adjustable range is within 14-24mm in diameter. Desiccant discharge chute with one exit for one canister size. An individual control box is mounted on the feeder bracket, which features ease of operator to access. The box consists of: - A Vibratory speed adjustment knob. Adjustable speed range: 0 100. - Power indicator. - ON/OFF switch. - 5A fuse. - Swivel Casters feature easy feeder movement. Top PC Cover for Vibratory bowl.
