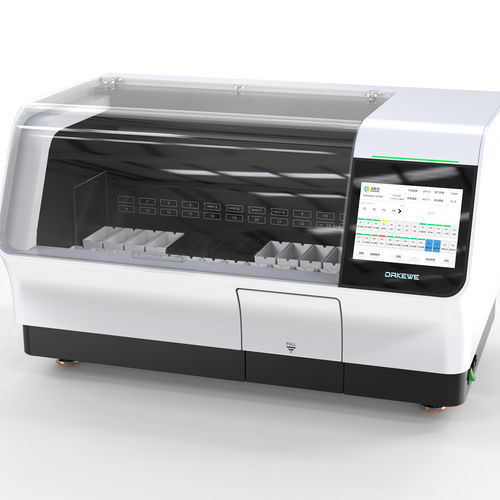

Slide stainer DP360 series

fully automatedroboticlaboratory

DP360 – DAKEWE MULTISTAINER FULLY AUTOMATIC AND INTELLIGENT HIGH SPEED SLIDE STAINER FOR HISTOLOGY A. GENRAL DESCRIPTION -up to 360 slides/h - Automatic with both Oven and Heater solution - 26 (2 x 13) positions for tanks, 4 of which are tempered with warm water bath: - 4 places for cleaning tanks that can be transformed into reagent tanks - 4 places for the entrance and exit of the slide racks, 2 of which can be transformed into reagent tanks - 1 space occupied by the fixed oven - high-speed robotic arm (1.3 m/s) for handling and moving the slide racks - compatible with a UPS battery backup B. QUALITY CONTROL (QC) - reagent change settings in days or number of slides - real time monitoring of slide staining cycle - visual indication of reagent quality (green, yellow, red) - visual indication of slide rack location (blue) - report of slide staining cycles (traceability) - AAT (Automatic Adjusting Technology) reagent saving system that optimizes stain time according to reagent quality - automatic temperature management of tempered tanks (Ambient to 38°C) - automatic temperature control of the oven (0°C - 70°C) - Traceability with automatic recording of treatment data C. ERGONOMIC, SAFE, SERVICE AND MAINTENANCE FEATURES - intuitive data setting interface - large touch screen - 10 inch friendly and intuitive graphical user interface (8,84”) - different user levels (operator, administrator, developer) - high efficiency activated carbon filtration protects users from toxic fumes - change according to use, max. every 3 months - control of the chemical level (ppm) in the machine with automatic regulation of the ventilation
