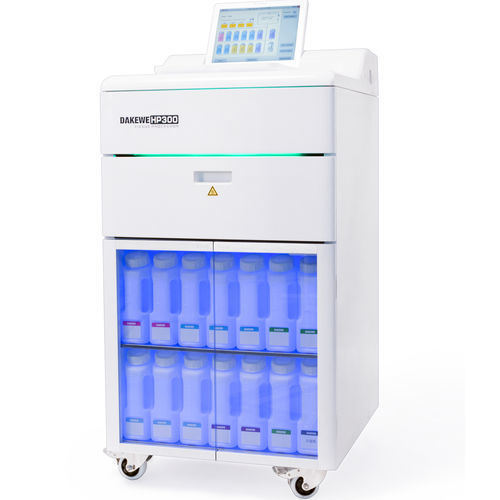

Tissue processor HP300

fully automatedfor histologydehydration

HP300 - DAKEWE AUTOMATIC TISSUE PROCESSOR VACUUM TISSUE DEHYDRATION MACHINE FOR HISTOPATHOLOGY A. GENERAL DESCRIPTION - mobile unit on 4 directional casters with brakes - maximum 300 cassettes (2 x 150 cassettes) - 3 washing programs - Up to 100 programs, each program can have up to 13 steps. - 4 paraffin tanks, 3 small (4.2 L) and 1 large (5.6 L) - Retort pressure detection sensors - compatible with UPS - high efficiency activated carbon filtration protects users from toxic fumes B.QUALITY CONTROL (QC) - Continuous process quality control - Continuous pressure monitoring - Reagent rotation (system) management - Traceability with automatic recording of treatment data C. ERGONOMIC, SAFETY, MAINTENANCE AND SERVICE FEATURES - large touch screen - 12.1 inch user-friendly and intuitive graphical touch screen - quick cleaning of surfaces in contact with paraffin (reconstituted marble) - heated Teflon lid (no paraffin deposit) - chemical resistant lid seal - 3 ultrasonic level sensors for continuous level control of the retort - 6 sensors for continuous temperature control of the retort - different user levels (operator, administrator, developer) - electric lock of the retort - daily event report E. OPTIONS - minimum basket size of 70 cassettes, in total 4 small basket with the capacity of 280 cassettes F. TECHNICAL SPECIFICATIONS dimensions W x D x H (mm): 620 x 640 x 1170 weight (kg): 180 voltage and frequency: 100 - 120 VAC, 60 Hz or 220-240 VAC, 50/60 Hz
