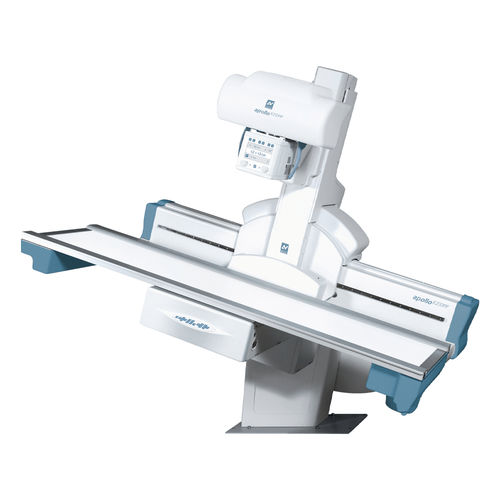

Radio-fluoroscopy system Apollo EZ DRF

digitalfor diagnostic fluoroscopywith tilting table

Apollo EZ DRF is a remote-controlled table that combines the compactness and versatility of the Apollo EZ with a powerful digital acquisition system based on a 17 x 17 in (43 x 43 cm) dynamic Flat Panel detector. With a small footprint, it is the ideal solution for examination rooms with limited space available for installation, while the digital acquisition system grants a complete coverage of the radiographic and fluoroscopic applications. Apollo EZ DRF is available with either 2-way tabletop movement, for maximum compactness, or with 4-way tabletop movement, in order to maximize patient coverage area, combining tabletop and tube/detector longitudinal movement. The Apollo EZ/DRF tabletop can also be made of carbon fiber for further reduction of the X-ray dose to the patient. Versatile Rapid and concurrent movements dramatically reduce patient preparation time and increase workflow. Even though the Apollo EZ/DRF was built to be compact, it can extend the focus-detector distance up to 71 in (180 cm) allowing to obtain chest images comparable to those done on a chest stand. In turn, this makes the remote-controlled room also suitable for routine exams. Dynamic Flat Panel Technology The innovative Dynamic Flat Panel detector delivers sharp and accurate images to support your diagnosis and is not affected by geometric distortion which is typical of Image Intensifiers. The large 17 x 17 in (43 x 43 cm) active area is suitable for examination of any anatomic region and provides almost 50% more coverage than a 16″ Image Intensifier.
