Multipurpose radiography X-ray generator RF Series

portablewith power supply

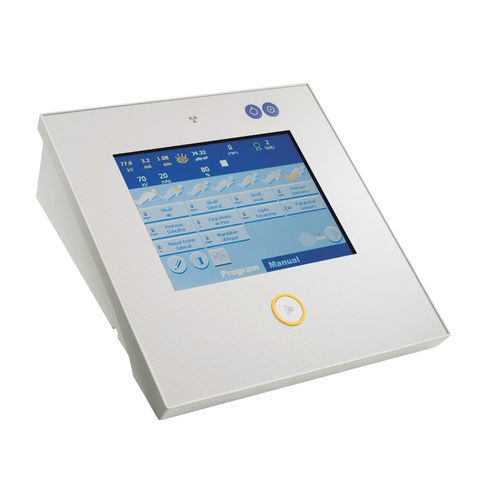

The RF Series X-ray generators are the standard for a wide range of radiography and fluoroscopy systems. The modular design of the RF family incorporates high versatility and excellent adaptation to all requirements of radiography and fluoroscopy applications. The generators for standard X-ray tube assemblies are available with nominal power from 30 kW to 55 kW. The generator can be controlled via several interfaces (Ethernet, Can, RS 422, Parallel). The integrated processor system provides excellent accuracy and reproducibility of the radiographic data by performing all control and regulating functions. Optional Controls Two control consoles are available: one with membrane keys and one with touch panel operation. For fluoroscopic applications only, touch panel operation is provided. For DR application, a Mini Console is available, which provides on / off and exposure release functionality. The required cooling interval is shown after each exposure o optimize the service life of the tube. TECHNICAL SPECIFICATIONS Maximum mA 1000 kVp Range 60-150 Kv mAs Range 1.0-1000 Power Supply 380 V +15% -10%, 50/60 Hz ± 3 Hz, 3-phase, PE 400 V +10% -15%, 50/60 Hz ± 3 Hz, 3-phase, PE 440/480 V ± 10%, 50/60 Hz ± 3 Hz, 3-phase, PE Options -Control Console -External manual exposure switch -Automatic exposure control (AEC) -Wall mount for control console -Parallel interface
