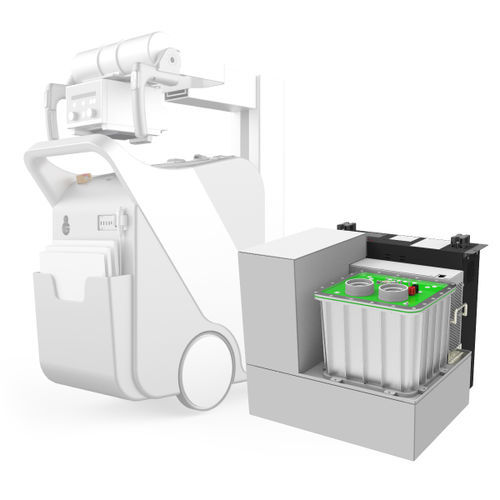

Multipurpose radiography X-ray generator DMP-300

portablewith power supply

High-capacity 3U-NCM Li-based battery extends operation time 12/24/105 VDC auxiliary power simplifies system integration Digital control circuit enhances performance and accuracy Built-in energy storage system extends the battery life Powerful Heart for Mobile DR Systems The DMP-300 X-ray Generator is designed for medical mobile DR systems. With a maximum power of 50 kW and high-frequency output of 450 kHz, the DMP-300 can effectively improve DR system performance. Its compact 3U-NCM Li-based battery and built-in energy storage pack lengthen operation times, which extends battery life. The DMP-300 is the most powerful heart for medical DR mobile systems. Product Spec Input Voltage 40 - 60 VDC, for Generator, 100 VAC – 240 VAC 1Ф, for Battery Charger Input Current Range 15 A - 10 A, for Battery Charger Input Frequency 50 Hz / 60 Hz, for Battery Charger kV Range 40 - 150 kV, 1 kV / Step kV Accuracy ± (5% of preset value + 1 kV) Rise Time < 1.5 ms (10% - 90%) mA Range 10 mA - 630 mA, R’20 mA Accuracy +/- (5% of preset value + 1 mA) ms Range 1 ms - 10000 ms, R’20 ms Accuracy ± (10% of preset value + 1 ms) mAs Range 0.1 mAs - 630 mAs @40kV, R’20 mAs Accuracy ± (5% of preset value + 0.2 mAs) Max. Output Power 320 mA / 100 kV / 160 ms Battery Charger 52 VDC / 19A Battery Pack NA Energy Storage Pack 126 mF External Output Voltage 12 VDC / 14A, 24 VDC / 10A, 105 VDC / 5A Motor Starter Dual Speed Support Peripherals AEC / DAP, Optional
