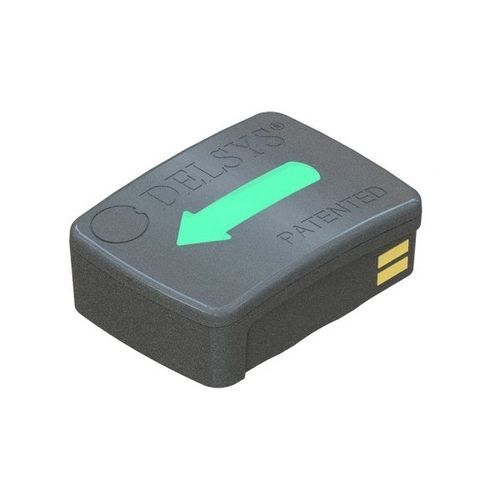

1-channel EMG Trigno™ Avanti

compactportabledigital

Get insightful measurements with precision Patented Technology Improved RF Performance Cable-free Design Selectable EMG Bandwidth Settings On-board Signal Processing Capture muscle activity and movement data that’s accurate and reliable wherever and whenever you need it. System & Software The Trigno Avanti Sensor is designed to work with all Trigno systems. Take movement sciences beyond the lab, to where the human body is in its element. Sensor Channels 1x EMG, up to 6x IMU Reference Type Dual on-board stabilizing reference Inter-Electrode Spacing 10 mm Size (Body) 27 x 37 x 13 mm Mass 14 g Battery Life 4-8 hours Operating Range 40 m in RF mode Host Dependent/unlimited datalogger Wireless Protocol -2.400-2.483 GHz ISM Band,Proprietary RF Protocol -BLE V4.2 EMG Bandwidths 10-850 Hz 20-450 Hz EMG Sampling Rate (Max) 4370 sa/sec Contact Material 99.9% Silver Patents Protected by one or more of the following Patents 6480731, 6238338, 6440067, 9351559, 8971983, EP1070479
