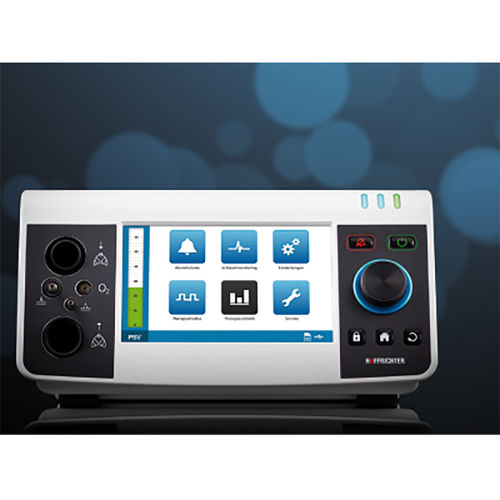

Intensive care ventilator Carat II

homeemergencyelectronic

Voltage supply Mains operation 100… 240 V AC (-20%, + 10%), 50… 60 Hz DC operation 12 V DC / 10 A or 24 V DC / 5 A Internal battery operation Lithium-ion battery, 14.8 V (nominal voltage) / 4.4 Ah / 65.12 Wh External battery operation AKKUPACK uni BASE / PLUS 20… 26 V (nominal current) / 5 A Maximum power consumption 75 W Electrical protection class Protection class II Features and power characteristics Dimensions (W x D x H) 304 x 253 x 160 mm Weight 4.72 kg Max. stable boundary pressure 60 hPa Min. stable limit pressure 0 hPa Max. working pressure 50 hPa Min. working pressure 0 hPa Max. flow 175 l / min Working Conditions Temperature range + 5 ° C to + 40 ° C Relative humidity 10%… 95% non-condensing Air pressure range 600 hPa… 1100 hPa Temperature range <1 day - 20 ° C to + 60 ° C <1 month -20 ° C to + 55 ° C <6 months - 20 ° C to + 45 ° C 6 months - 20 ° C to + 35 ° C Pressure at 60 l / min In the patient connection of the device inspiratory pressure Single hose system = 2.8 hPa Double hose system = 2.9 hPa In the patient connection of the device expiratory pressure Single hose system = 3.9 hPa Double hose system = 4.2 hPa Total resistance of the system <6 hPa
