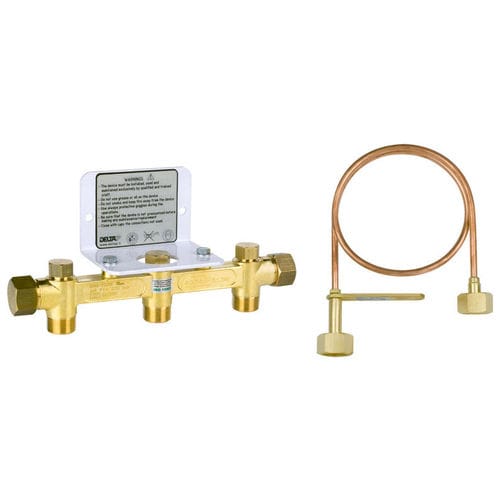

High-pressure manifold

for medical gas

GENERAL DESCRIPTION High pressure brass manifold 3 places for connection of medical gas cylinders. MAIN FEATURES Cylinder connection gas-specific; Every single inlet connection is equipped with non-return valve; the metal support flask allow to fix the manifold on the wall. MANIFOLDS High pressure brass enblock manifold. Three places for medical gas cylinders. The cylinder connection is different for each gas, every single inlet connection is equipped with non-return valve, the metal support flask allow to fix the manifold on the wall. Manifolds are HALOGEN FREE. HIGH PRESSURE PURGE VALVES They have to be connected to the ramp for the purge operations. Chrome plated brass body with metal flask to be fixed on the walk The valve is equipped with gas specific screw and welding nuts for the connection to the ramp. Technical data SUITABLE FOR THE FOLLOWING GAS: 02. Air. N20. C02 MAXINLET PRESSURE: -200 bar for 02 and Air -110 bar for N20 and C02 MECHANICAL RESISTANCE: >85.000 kPa (~ 850 bar] PRESSURE LOSS: according with EN ISO 21969 LEAK RATE (with taps on the unused connections): MAX ¿"IO*6 mbar l/s (2.4*10^ml/min) STORAGE TEMPERATURE: -20 + +60 °C OPERATING TEMPERATURE: -5 + +60 °C WEIGHT: 2.8 Kg STANDARD: ISO 7396-1. ISO 15001. EN ISO 21969 MATERIAL: crass THESE SEVICES HAVE SUCCESSFULLY WITHSTOOD THE ADIABATIC COMPRESSION TEST AS REQUIRED BYTHEEN ISO 21969 DESGREASED IN ACCORDANCE WITH ISO 15001 HALOGEN FREE Product Codes High pressure ramp - series 2008M 8858-2008M 8859-2008M 8860-2008M 8861-2008M Purge valve (to be ordered separately from the ramp) 8678-1073 Purge valve for ramps with soldering coupler
