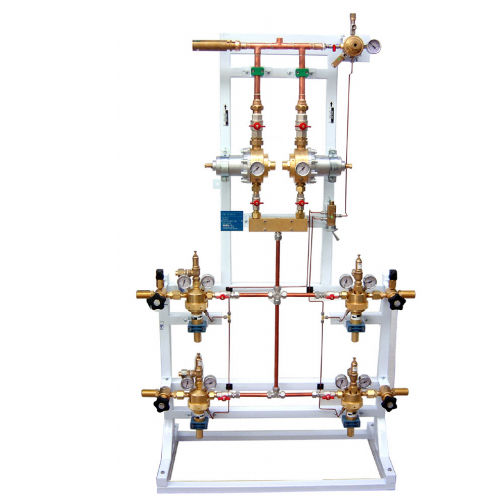

High-flow medical gas supply unit C-2XC2210M-2250M

automaticwith automatic changeover

GENERAL DESCRIPTION Automatic changeover supply unit for medical gases high flow rate. It is composed of four high pressure valves with metal seat and metal plug, four pressure reducers 2210M series, two pressure reducers 2250M series and a pneumatic system for the changeover between the ramp in dispensing and the secondary source and vice versa. The supply unit was provided of a by-pass system, with the aim of ensuring the gas supply even in the case become necessary maintenance interventions, in fact each pressure reducer and the driving part can be isolated (thanks to the special ball valves ) allowing the partial operation of the supply unit and thus ensure the continuity of supply. MAIN FEATURES The use of two first-stage reducers mounted in parallel, which allows to guarantee high flow delivery (up to 200 Nm3 / h) First stage and second stage Pressure Reducers in accordance with ISO 10524-2 standard Shut-off valves with high pressure metal plug and seat, these valves have passed the adiabatic compression test as required by ISO 7396-1. High and low pressure gauges according to EN 837-1 Pressure of high pressure pre-calibrated at 20 bar, have passed the test of adiabatic compression System by-pass Incoming Connections varied according to gas Automatic changeover supply unit for medical gases high flow rate. It is composed of four high pressure valves with metal seat and metal plug, four pressure reducers 221OM series, two pressure reducers 2250M series and a pneumatic system for the changeover between the ramp in dispensing and the secondary source and vice versa. Two pressure reducers are connected to the output of the same line.
