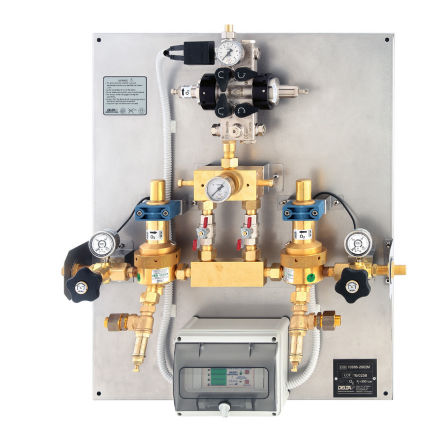

Automatic medical gas supply unit C-SR-2210M-VIT38

double stage

C-SR-2210M-VIT38 AUTOMATIC SUPPLY UNIT AUTOMATIC DOUBLE STAGE SUPPLY UNIT C-SR-2210M-VIT38 GENERAL DESCRIPTION This unit has been realized according to the ISO 7396-1 and it is suitable to be installed in certified medical gas pipeline systems. The double stage reducing system with separate reducers makes this specific unit perfectly suitable to be used also with systems that use the full reduction at the unit level with low pressure output (4-5 bar) MAIN FEATURES First and second stage reducers realized according to the ISO 10524-2, CE marked as medical devices (MDD 93/42/EEC) Shut-off valves with metallic seat and shutter; they have successfully withstood the adiabatic compression test as required by the ISO 7396-1; high and low pressure gauges according to EN 837-1; high pressure switches preset at 20bar, they have successfully withstood the adiabatic compression test; gas specific inlet connections; INOX back support panel Two version available: C-SR-2210M-VIT38 with integrated alarm panel C-SR-2210M-VIT38 without integrated alarm panel The main technical characteristics of the unit, common to both models, are the following: -first stage and second stage reducers realized according to the IS010524-2; CE marked as medical device (MDD 93/42/EEC) -first stage reducers are halogen free -shut-off valves with metallic seat and shutter; they have successfully withstood the adiabatic compression test as required by the ISO 7396-1 -high and low pressure gauges according to EH 837-1 -high pressure switches preset at 20 bar. they have successfully withstood the adiabatic compression test -gas specific inlet connections -Stainless steel support panel for wall mounting
