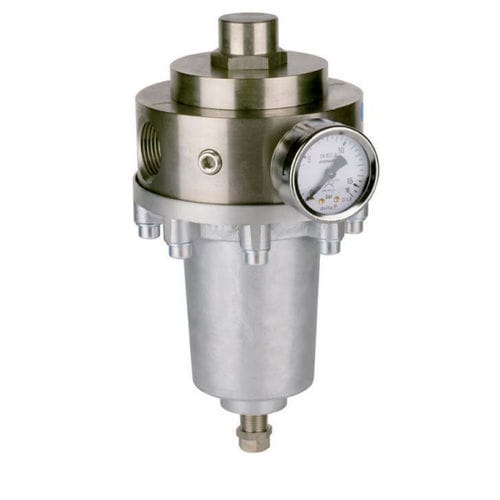

Gas pressure regulator 2250M-2251M SERIES

GENERAL DESCRIPTION Second stage high flow rate reducers specially projected to be installed in decompression units realized in compliance with ISO 7396-1. MAIN FEATURES The reduction valve is equipped with a compensated shutter in order to assure more stability in the outlet pressure in case of variations of the inlet pressure. The reducers are composed of an aluminium cap and a brass enlock body chemical nickel plated with diaphragm servomotor, this assembling assures at the same time, solidity, sturdiness and accuracy of the outlet pressure. These regulators are projected and realized according to the ISO 10524-2 Standard. Second stage high flow rate reducers specially projected to be installed in decompression units realized in compliance with ISO 7396-1. The reduction valve is equipped with a compensated shutter in order to assure more stability in the outlet pressure in case of variations of the inlet pressure. The reducers are composed of an aluminium cap and a brass enlock body chemical nickel plated with diaphragm servomotor, this assembling assures at the same time, solidity, sturdiness and accuracy of the outlet pressure. These regulators are projected and realized according to the ISO 10524-2 Standard. Technical Data SUITABLE FOR THE FOLLOWING GASES: 02. N20, Air. N2. C02 MAX INLET PRESSURE: . 5 bar MIN INLET PRESSURE: 2 bar OUTPUT PRESSURE: . * 10 bar NOMINAL OUTPUT PRESSURE: B oar FLOW RATE: see the flow rate diagram INLET CONNECTION: GIT for 2250M; G1/2" F for 2251M OUTLET CONNECTION: G1'F for 2250M; G1/2" F for 2251M STORAGE TEMPERATURE: -25 + +60 °C OPERATING TEMPERATURE: -25 ++¿5 °C WEIGHT: 6 Kg (2250MI; 3.5 Kg (2251M]
