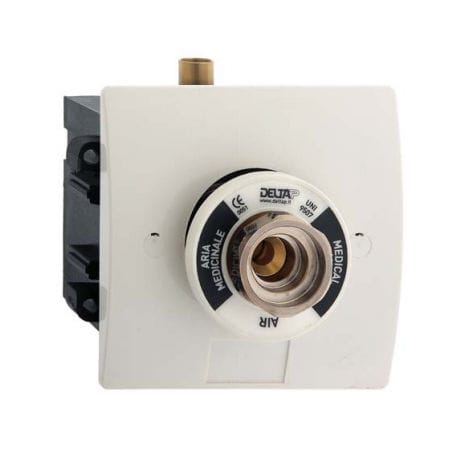

Medical gas outlet UNI 9507

GENERAL DESCRIPTION These devices are intended to be installed as terminal units in medical gas pipeline systems in accordance to requirements of ISO 7396-1 standard. They are conceived and manufactured according to UNI 9507 Italian Standard. The vacuum level is adjusted by the proper regulation valve and maintained stabilized by the intermittent works of the pumps. The transducer read and shows continuously the generated vacuum level. MAIN FEATURES Available base blocks: with soldering coupler or with hose connection Available probes: with 90° hose connection or G1/4 female connection Regulatory Standards: UNI 9507, ISO 9170-1 Coloured plastic ring nut and gas symbol to identify each specific gas are provided CE marked products as medical devices in accordance to 93/42/EEC Directive Degreased in accordance with ISO 15001 Both wall embedded and external mounting containing boxes are available These devices are quick connection terminal units for medical gases. They are conceived and manufactured according to UNI 9507 Italian Standard. They are supplied with screw nut and copper pipe for the connection to the line. They are supplied with coloured plastic ring nut and gas symbol to identify each specific gas. Wall embedding or external boxes are available to complete the installation on the wall. Technical Data SUITABLE FOR THE FOLLOWING GASES: 02. N20. Air400. C02 and Vacuum MAX INLET PRESSURE: 10 bar (1000 kPa); 5 bar (500 kPal for Vacuum WORKING PRESSURE: /.DO - 500 kPa (¿-5 barl; below -¿0 kPa (- 0.4 barl for Vacuum STORAGE TEMPERATURE: -20 * +60°C OPERATING TEMPERATURE: 0 t40°C AVAILABLE BASE BLOCKS: with hose connection or soldering coupler
