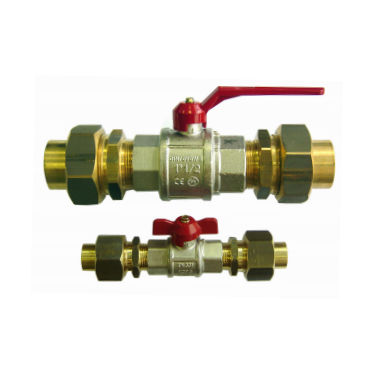

Medical gas valve

GENERAL DESCRIPTION Delta p can supply a wide range of ball valves suitable for use in medical gas pipeline systems. In particular the following types are available: Shut off ball valves with 3 pieces connections Shut off ball valves with NAMUR sensor to signal the state opening/closing of the valve Shut off lockable ball valves with padlock locking system MAIN FEATURES All thee ball valves are degreased by an ultrasonic cleaning system and are supplied with brass three pieces connections and gaskets suitable to be used with medical gases. All valves are made of chrome plated brass and available in different diameters from G 1/8” to G 3”. Metal boxes for the installations of service shut-off ball valves, different typologies available according to number of valves and diameters. They can be installed externally or wall embedded. Shut off ball valves with NAMUR sensor are equipped with a sensor that allows signals of the state opening/closing of the valve. The sensor is supplied with PVC cable, standard length of 2 meters for the connection to an external alarm. Shut off lockable ball valves are supplied with a system of locking with a key padlock to ensure the locking of the valve in the status open or closed in order to avoid unauthorized. These ball valves are degreased by an ultrasonic cleaning system and are supplied with brass three pieces connections and gaskets suitable to be used with medical gases. All valves are made of chrome plated brass and available in different diameters from G1/8" to G 3". Metal boxes for the installations of service shut-off ball valves, different typologies available according to number of valves and diameters.
