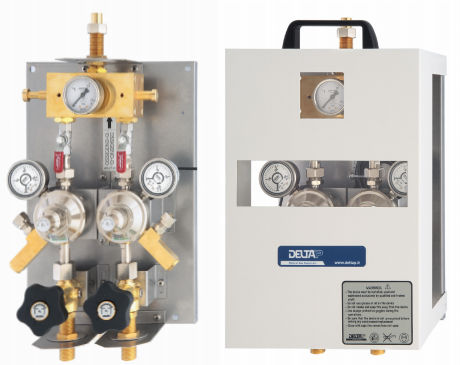

Low-flow medical gas supply unit C-LH/S

automatic

GENERAL DESCRIPTION This unit has been realized to be installed in day-surgery little clinics or day-hospital structures or also in little hospitals with low flow rate requirements. MAIN FEATURES Single stage reducer realized according to the ISO 10524-2; Shut-off valves with metallic seat and shutter; they have successfully withstood the adiabatic compression test as required by the ISO 7396-1; high and low pressure gauges according to EN 837-1; high pressure switches preset at 20bar, they have successfully withstood the adiabatic compression test; gas specific inlet connections; INOX back support panel with white frontal cover with windows. This unit has been realized to be installed in day-surgery little clinics or day-hospital structures or also in little hospitals with low flow rate requirements. The main components of the unit are the following: -single stage reducer realized according to the IS0 10524-2 -shut-off valves with metallic seat and shutter; they have successfully withstood the adiabatic compression test as required by the ISO 7396-1 -high and low pressure gauges according to EN 837-1; -high pressure switches preset at 20bar, they have successfully withstood the adiabatic compression test; -gas specific inlet connections; -INOX back support panel with white frontal cover with windows -Helium final test (max leak 10 mbar l/sec). Automatic central unit C-LH/S Technical Data SUITABLE FOR THE FOLLOWING GASES: 02. N20, Air. N2. C02 MAX FLOW RATE: 30 Nm3/h MAX INLET PRESSURE: 200 bar (for 02. Air and N2); 110 bar (for N20 and C02) MIN INLET PRESSURE: 10 bar OUTLET PRESSURE: 8 + 10 bar STORAGE TEMPERATURE: -20 + +60 °C
