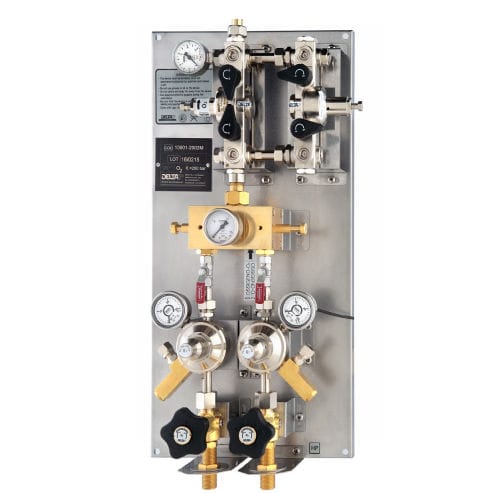

Low-flow medical gas supply unit C-LH-R 2290

double stageautomatic

GENERAL DESCRIPTION This unit has been realized to be installed in day-surgery little clinics or day-hospital structures or also in little hospitals with low flow rate requirements. The double stage reducing system with separate reducers makes this specific unit perfectly suitable to be used also with systems that use the full reduction at the unit level with low pressure output (4-5 bar) MAIN FEATURES First and second stage reducers realized according to the ISO 10524-2, CE marked as medical devices (MDD 93/42/EEC) Shut-off valves with metallic seat and shutter; they have successfully withstood the adiabatic compression test as required by the ISO 7396-1; high and low pressure gauges according to EN 837-1; high pressure switches preset at 20bar, they have successfully withstood the adiabatic compression test; gas specific inlet connections; INOX back support panel Two version available: C-LH-R2290 with integrated alarm panel C-LH-R2290 without integrated This unit has been realized to be installed in day-surgery little clinics or day-hospital structures or also in little hospitals with low flow rate requirements. The unit can be supplied in two different versions: -C-LH-2290 supply unit with integrated alarm system -C-LH-2290 supply unit without integrated alarm system The double stage reducing system with separate reducers makes this specific unit perfectly suitable to be used also with systems that use the full reduction at the unit level with low pressure output (4-5 bar). The automatic change-over system is controlled by a pneumatic switch-over device equipped with a visible piston that shows the working side.
