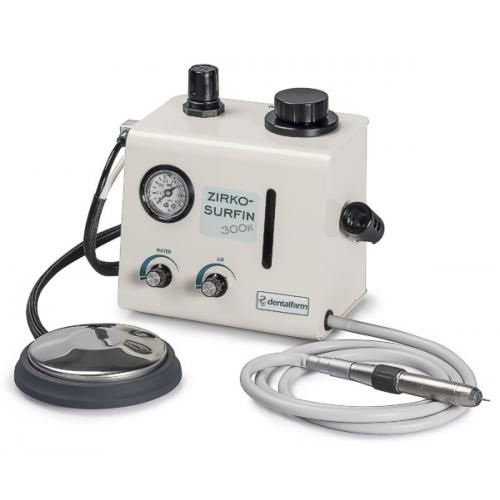

Dental laboratory turbine control unit ZIRKO-SURFIN

airfoot-operatedwith external spray

Powerful, quite and reliable air high speed turbine which has been studied for accurate modelling and finishing operations on æsthetic works in ceramics, lithium disilicate or zirconia. The 4-5 BAR powered rotor attains the speed Cooling of both the tool and the machined surface is assured by a steady flow of air and can be extended thanks to the water mister obtained through the atomised water contained in the internal tank. The control unit incorporates the air treatment set (consisting of filter, pressure reducer and pressure gauge), the tank for the cooling water, the pneumatic connections (input pipe-fitting and connection fittings to the foot-control, the flow adjustment valves and the support for the handpiece in idle mode). The high performance handpiece has a lightweight, ergonomic design and compact size. The chuck pliers accomodate burs with shaft Ø1.6mm which can be easily inserted and locked in place without using any specific tools. CHARACTERISTICS Air pressure: 4-5 BAR Consumption: 40-50 l/min Water tank: 170ml Handpiece weight: 105g Bur shaft: Ø1.6mm Size of control unit: mm 230x170x210H Total weight: 4,1 kg
