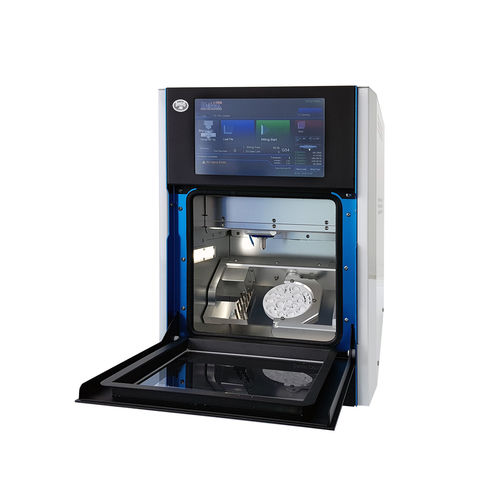

CAD/CAM milling machine Arrow Dry mill

dentalfor dental waxfor zirconia

The Arrow Dry Mill machine uses a 5-axis system which can process zirconium, soft sinter metals, PMMA, other composites and wax. It is suitable for dry processing only. Anatomical crowns and temporary restorations are milled with the highest precision. Simple operation of the Arrow Dry Mill machine is achieved by special user-friendly license-free software. Data input is in STL format. Technical information: – 5 axis simultaneous operation – dry machining – working area X:140, Y:130, Z:105, A: 360°, B: 360° – automatic tool change (capacity up to 9 tools) – good dynamics – instant dust extraction during machining of zirconia – voltage 230V, 50/60Hz – spindle: high-frequency spindle max. 50.000 rpm; Pmax/5s = 450 W – clamping system for tools with a diameter of 4mm – compressed air min. 6 bar at 80 l/min Allows processing of various materials in all axes: – zirconium oxide – soft sinter metals – resins like PMMA/composite – wax – other materials in the future Dimensions: Width: 392 mm Height: 549 mm Length: 575 mm Weight: 36 kg Related products
