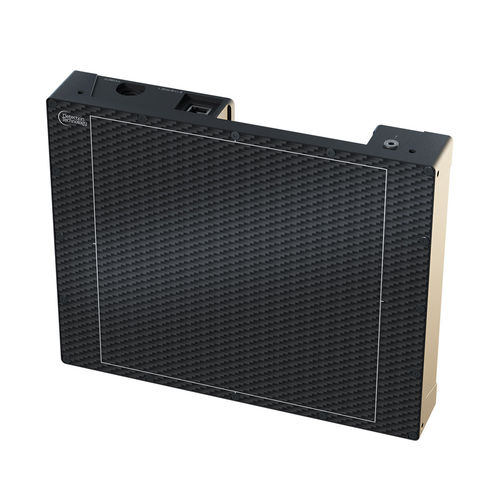

Fluoroscopy flat panel detector X-Panel ® 2222s

9 x 9

Active area 222-by-216 mm Application-optimized CsI scintillator Active CMOS pixel sensor (APS) Dual gain (LFW/HFW) 100 μm pixel 16-bit ADC Frame rate up to 60 fps (@full frame, scan-to-buffer mode) Scan-to-buffer-mode up to 100 full frames In-built correlated double sampling (CDS) for extended surgical scans In-built dark, gain, and defect pixel correction Fully programmable ROI 5 GigE / Camlink full / USB 3 data interface options Imaging performance Dynamic range +80 dB DQE(0) >70% @RQA5 MTF 60% @ 1 lp/mm / 30% @ 2 lp/mm The X-Panel 2222s is a CMOS X-ray flat panel detector series that includes application-optimized variants for mobile and mini C-arm systems. For greater patient and healthcare professional experience and safety, the digital X-Panel 2222s equips C-arms with premium quality, low-dose imaging at fast scanning speeds. The X-Panel 2222s features a high-resolution zoom mode with native 100 μm pixel pitch, ultra-low noise with close to 1 ADU (analog-to-digital unit) temporal dark noise (@14 bits), and a large active area of 222-by-216 mm. It makes gray scales clear with its true 16-bit analog-to-digital conversion. It is equipped with a fast sensor that provides up to 60 full frames per second through 5 GigE (Gigabit Ethernet) interface. The X-Panel 2222s is proven to be inherently ultra-stable, even in cases of longer scans. For both use cases, the X-Panel 2222s enables small system form factors that take less space in operating rooms, and a larger field of view (FOV) that is unaffected by geometrical distortions.
