Electronic platform scale FHD Series

for wheelchairswith mobile displayUSB

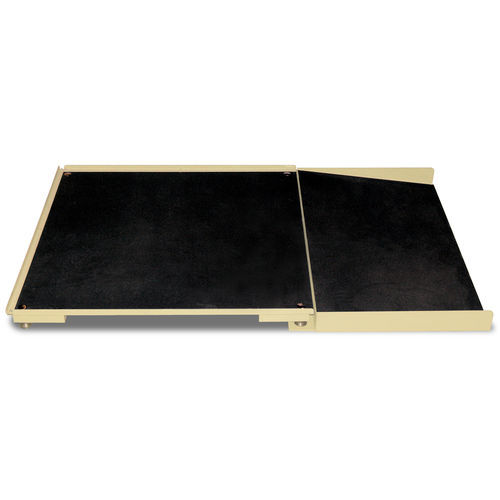

The large slip-resistant, low-profile platform of Detecto’s FHD scales accommodate walk-on patients, wheelchairs, straight-legged chairs, or walkers. These scales feature a high 1,000 lb / 450 kg capacity with your choice of 36 inch (91 cm) or 48 inch (122 cm) square platforms. The weight indicator provides numeric keypad for entry of wheelchair tare weights, EMR/EHR ready output via serial, USB or optional Ethernet ports to printers or PCs (optional Wi-Fi also available). This scale can only be used for top of floor installations. Please consult factory for pit type installations. 28.5 inch (72 cm) long ramp and 15 ft (4.5 m) indicator cable included. AC adapter optional (listed under Options tab). Features 28.5 in/72 cm Access Ramp 6 C Batteries (Not Included) EMR/EHR Ready Low-Profile Design Output to Printer or PC Wi-Fi and Ethernet Optional Specifications Platform Size (133): 36 in / 91 cm square Platform Size (144): 48 in / 122 cm square Ramp Length: 28.5 in / 72 cm Indicator Cable Length: 15 ft / 4.5 m Display: 5 digit, seven segment, 7/8 inch (22.23 mm) high LCD weight digits Keyboard: 19 key, color-coded, sealed membrane Power: 6 “C” cell Alkaline, Ni-Cad or NiMH batteries (not included) OR an optional 12 VDC 1.25A wall plug-in AC power adapter (Detecto part number MV1PWR) Connectivity: 6 “C” cell Alkaline, Ni-Cad or NiMH batteries (not included) OR an optional 12 VDC 1.25A wall plug-in AC power adapter (Detecto part number MV1PWR)
