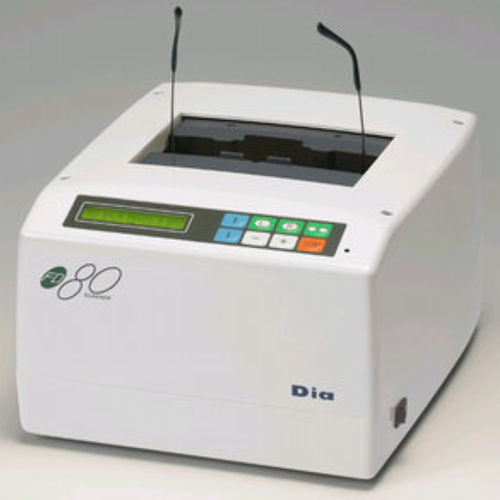

Eyeglass feeler FD-80 3

Loading a frame is simple. Place the frame between the clamps and press a trace button. The rest is automatic! Both eyewires are traced in succession. Tracing a lens or pattern is as simple as placing a block anywhere on a lens or pattern. The FD-80 will automatically select the lens tracing probe. Creates a perfectly boxed lens-shape data automatically or optionally creates a decentered lens-shape data if the patients Rx information is inputted. Operation Medes - • Automatic both eyes / Single eye measurement • Frame / Lens / Pattern tracing • Variable tracing speeds Range of Measurement - Frame:18mm(in height)-70mmφ Lens:15mm(in height)-70mmφ Time of Tracing - • 38 seconds for measuring both eyes • 22 seconds for lens or pattern Data Ports - 2)RS232C 1)RS232C with DC5V 280(W)x319(D)x180(H)mm Weight - 7kg Power Requirements - 24V DC, 20W (100-230V AC / 24V DC adapter attached)
