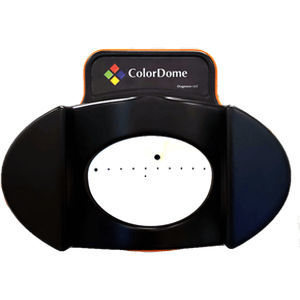

Electroretinograph with evoked potential monitoring ColorDome

with electrooculograph

Advanced flash capabilities • ColorDome™ has a trillion-to-1 luminance range • Flash duration from nanoseconds to hours • Any color background from RGB and amber LEDs Easy to use, ultimate performance • Self-calibrating • Full electronic color control • Flash or flicker stimuli in any color & duration • Multiple desktop and cart mount options Applications • Disease diagnostics and monitoring • Research and development • Drug discovery and screening • Clinical trials • Neuro-ophthalmology LED flash Any color flash: from RGB & amber LEDs; UV LED also available Red (627 nm), Amber (590 nm), Green (530 nm), Blue (448 nm) LED sets produce 9 order-of-magnitude luminance range Flash duration from nanoseconds to hours Proprietary CIE compensation yields ultra-stable luminance & color output Maximum white flash >60 cd·s/m2 (6x ISCEV standard maximum flash) On/off flashes of any duration, waveforms including sine & exponential, arbitrary wavetable Calibrated in photopic and scotopic units as well as Trolands User defined color and luminance stimuli Auto calibration Xenon flash Xenon flash calibrated from 0.001 cd·s/m2 to 2,000 cd·s/m2 Triple tube for wide range and linearity Auto calibration monitors each flash & adjusts flash duration in real-time Integral filter holder for adding customer filters if required Max white flash 2,000 cd·s/m2 Calibrated in photopic and scotopic units as well as Trolands Capable of double flashes including “double bright flash” protocol Overall flash Flash luminance range from 10-8 to 2,000 cd·s/m2 Anywhere within this range, luminance can be changed with no less than 1% resolution
