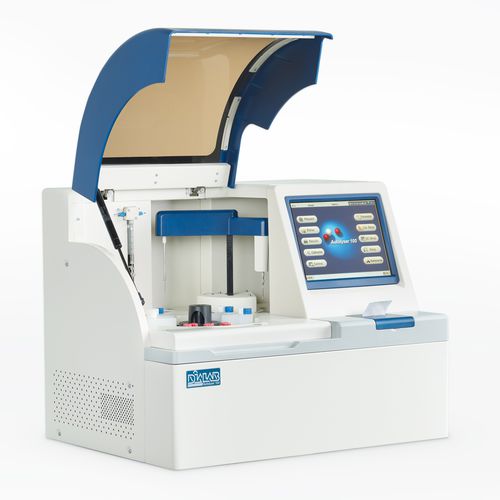

Automatic biochemistry analyzer Autolyser 100

for drug testingbenchtopserum

Test modes: - Routine, Batch, Emergencies (STAT) Computer: - Built-in with touchscreen Printer: - Built-in thermal printer, external printer optional Sample pre-dilution: - Yes Calibrator pre-dilution: - No Reaction Cuvettes: - Disposable Cuvette Washer: - No Measuring unit: - Filter wheel photometer, 8 slots Measuring range: - 320 nm - 850 nm QC-program: - Yes LIS: - One-way Reagents / Samples / Calibrators & Controls / Cuvettes Cuvettes: - 90 cuvettes, 10 cuvettes per Strip Reaction volume: - 180 μL to 500 μL Cuvette temperature: - OFF/30/37°C ± 0.3°C Reagent cooling: - No Tray removable - Yes The Autolyser 100 has one combined rotating tray containing reagents, samples and reaction cuvettes. Photometer Wavelengths: - 340, 405, 450, 510, 546, 578, 630, 670 nm Absorbance range: - 0.000 – 3.500 Abs Resolution: - 0.0001 Abs Lamp: - Halogen Lamp Pippetting arms / Dilutor Pipetting arms: - 1 Reagent pre-heating: - Yes Collision sensor: - Yes Liquid level detection: - Yes Dilutor: - 500 µL Syringe Power Requirements, Weight and Dimensions Power supply: - 100 - 240 VAC, 50/60 Hz Water consumption: - < 3 L per hour Gross weight: - 80 Kg
