K+ electrolyte analyzer Unity®

Na+Cl-benchtop

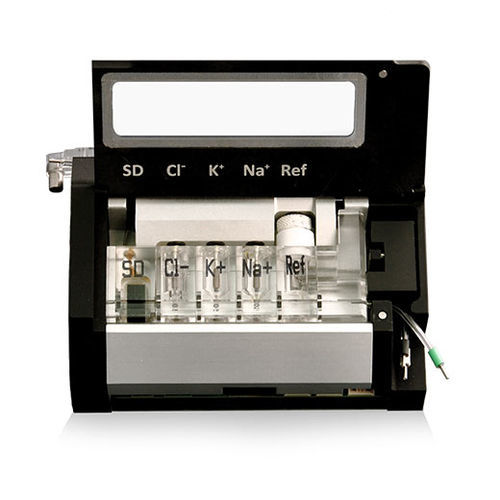

The Diamond Diagnostics Unity Integrated Electrolyte System is a fast and compact ISE module measuring Na+, K+ and Cl- within Serum, Plasma and Diluted Urine utilizing Ion Selective Electrode (ISE) technology. The Diamond Unity® is uniquely designed with a powerful microprocessor and integrated electronics allowing for easy integration into any size Chemistry Analyzer platform. Featured Benefits Compact Size Flexible Reagent System Long Life Reference Accessible Service Area Fully Visible Pathway Fully Shielded Measurement Chamber Positive Engagement Latching System Horizontal Electrode Orientation Sample Serum or Diluted Urine Data Storage 2000 Patient Results 500 QC Results per level (3) 100 Calibrations Sample Size 60-100 pl Serum 140 -150 pl Urine Number of Parameters 3 (Simultaneously) Calibration 2 Point every 8 hours On Demand 1 Point after every Measuremen Communication RS232 Communication AnalysisTime Sérum: 30 sec (100 per hour) Urine: 60 sec (50 per hour)
