Photometric POCT analyzer InnovaStar®

for inflammatory diseasesfor diabetesCRP

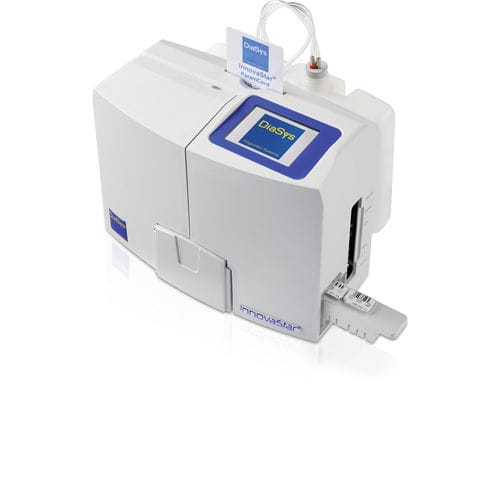

InnovaStar® is an automatic compact POCT analyzer for the daily practice that delivers result quality comparable to measurements on laboratory analyzers. Easy to use No special knowledge and extended training is required to operate the system. Testing is made easy with unit-dose reagents and precalibrated tests. The system is calibrated automatically with parameter cards which come with every test package. Precise High-quality reagents from DiaSys, freedom from interference, and a photometer detection unit with outstanding linearity are the guarantee for highest possible precision. Technical specifications Barcode Identification - Automatic barcode scan for reagents; optional barcode scanner for samples Calibration - Pre-calibrated tests Data Storage - 50 results Measurement Principle - Photometric / Turbidimetric Method Storage - Up to 19 different methods or lots EDP Interface - RS232 connection; USB connection via adapter Dimensions - 20 cm (W) x 15 cm (H) x 17 cm (D) Parameter HbA1c IS Measuring Range - 4.9-16%DCCT (unitsselectable) - 30 -150 mmol/mol Precision (CV%) - 0.985% at 5.58% DCCT (in series, n=20) Samplespecimen - WholeBlood Sample Volume - Détermination of ail analytes Measuring Time - <5 min Shelf Life - 18 months Weight - 4 kg
