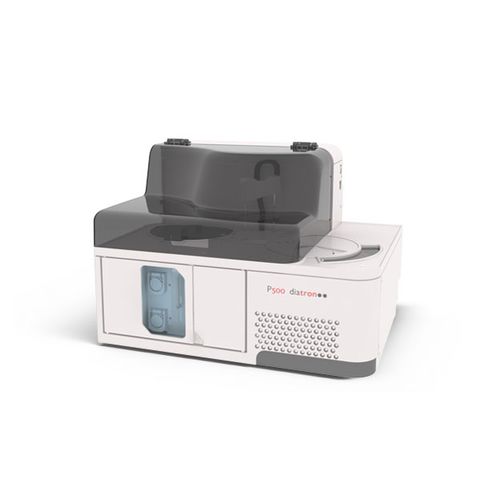

Automated clinical chemistry analyzer Pictus 500 (P500)

for clinical diagnosticbenchtopwith ISE

The P500 is a bench top, fully automated Clinical Chemistry system comprised of advanced Windows-based software, state of the art components and user-friendly interface provide a long life platform for analytical excellence. The system includes a full range of reagents, controls and calibrators. *The products/features (mentioned herein) are not commercially available in all countries KEY FEATURES AND BENEFITS Intelligent software High quality components Multi-functional pipetting arm User friendly interface Uninterrupted workflow Inventory management Remote access & diagnostics Cost effective operation SPECIFICATIONS Sample Racks/Positions per rack: 5 / 19 Samples on-board capacity: 95 Optional direct 4-ISE module Reaction volume (μL): 180 - 650 PMMA reusable/single use cuvettes on board (in segments of five): 80 Time to first result (seconds): 45 Serum, plasma, urine, CSF and other sample types can be used Refrigerated reagent tray: 8+/- 2 ⁰C Refrigerated on-board single reagents/tests: 72 Water Consumption: up to 2 l/h Up to 3 different reagents per test QC: Graphical and statistical; Westgaard rules indicated Levey-Jennings plots, twin QC and box whisker plots OPTIONS Optional direct 4-ISE module Optional stand/cabinet Optional auto fill / drain unit for system wash & waste
