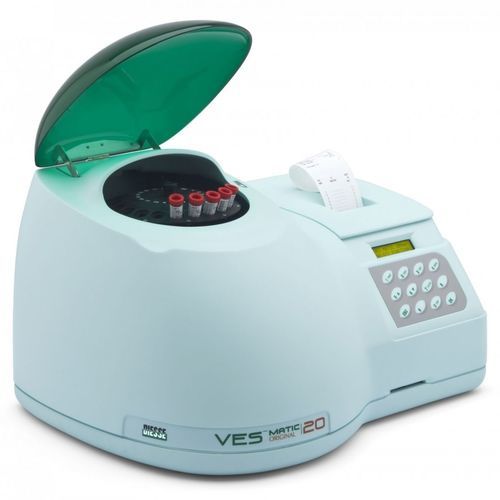

Automatic ESR analyzer VES-MATIC 20

for clinical diagnosticwith barcode reader

Automatic instrument for the determination of the ESR on 20 samples simultaneously. The ESR reading at the first hour is performed in 24 minutes including the mixing of samples. AUTOMATED Automated system for the direct determination of ESR in 20 samples simultaneously RESULTS ONLY 20 MINUTES Results obtained after only 20 minutes of sedimentation NO INTERFERENCE IN HISTOLOGICAL SAMPLES It is an excellent system for the ESR in lipemic and bilirubinemic samples NO BIOLOGICAL RISK ESR is determined in closed tube: No contact with blood; No blood is withdrawn; No liquid waste is produced. SIZE 490 x 330 x 365 mm ( l x h x w ) WEIGHT 12 Kg POWER SUPPLY 90/264 Vac POWER CONSUMPTION 65 VA BAR-CODE READER EXTERNAL DISPLAY With liquid crystals in Super Twisted technology; Two rows each with 16 characters. PRINTER Alphanumeric with thermal paper 58 mm wide, 36 characters per line, speed 20 mm / sec. INTERFACE RS232C and RS485 PROTECTION CATEGORY CLASS I
