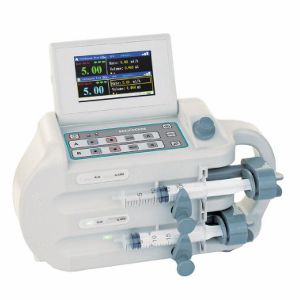

2-channel syringe pump Instilar 1438

continuousmodular

This pump has two syringe drive system delivering drugs independently and cooperatively. Features Pop-up monitor: large screen 125 mm (128 × 64 pixels), setting with convenient operation interface providing an accurate control of both parameters and infusion process Wide range of the adjustable occlusion level Setting of the flow rate according to the syringes of different specification Control knob combined with a keyboard to simplify operation Automatic calculation of the flow rate according to the set infusion volume and time Operation modes: Continuous flow rate infusion mode Volume & time infusion mode Intermittent infusion mode Bolus & infusion mode Range of flow rate 5 ml syringe: 0.1 - 150 ml/h 10 ml syringe: 0.1 - 300 ml/h 20 ml syringe: 0.1 - 600 ml/h 30 ml syringe: 0.1 - 900 ml/h 50 ml syringe: 0.1 - 1200 ml/h Accuracy ± 2 % Range of total infusion volume 0.001 - 999999 ml Occlusion level evaluation 300 - 900 kPa Patient weight 2 – 200 kg Preset infusion volume 0.1 - 1000 ml Bolus rate 5 ml syringe: 150 ml/h 10 ml syringe: 300 ml/h 20 ml syringe: 600 ml/h 30 ml syringe: 900 ml/h 50 ml syringe: 1200 ml/h Compatible syringes all the syringe in the standard capasity set 5, 10, 20, 30, 50, 60 ml Flow rate ml/h, mg/h, µg/h, mg/kg/h, mg/kg/min, µg/kg/h, µg/kg/min, ml/min, mg/min, µg/min Battery The battery can be used for more than 3 hours after being charged. Dimensions 339 x 197 x 177 mm Weight 4 kg
