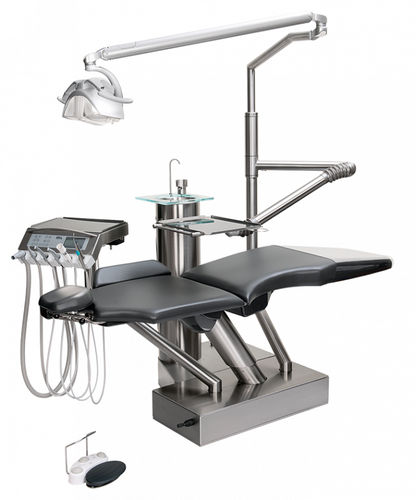

Orthodontic treatment unit with chair L2-S300

compactwith adjustable headrestwith hygiene system

Doctor’s device on a swivelling arm with integrated suction: Swivel ranges by version: with cuspidor: 237° without cuspidor: 270° The touch screen guarantees intuitive operation. The user interface can be individually configured. It can be used for endodontics at the touch of a button. Integrated flushing function for all user parts, for up to 6 users, storage for 2 standard trays, operation via touch screen or hands-free via wireless foot controller. Available with white or anthracite casings. EQUIPMENT Standard Stainless-steel structure Comfort upholstery Low-noise chair movement with soft start and stop 5 chair positions can be stored Doctor’s device with touchscreen on a swivelling arm with integrated suction system Wireless foot controller EQUIPMENT Optional Left and/or right arm rest Height-adjustable tray Holder for waste container on the tray LED operating lamp Cuspidor as a stainless-steel column Bottle Care System or Water treatment with water separation unit* in accordance with EN 1717 and EN 7494-2 Integrated dry* or wet suction system Standard turbine connection EM-12 L micromotor(s) Piezo scaler 3-function syringe * Only available with cuspidor ERGONOMICS CONCEPT L2-RANGE The entire L2-range is designed for work on horizontally positioned patients. Whether your patients are short or tall - this is the right place for them! Double-jointed head rest. The head inclination is infinitely adjustable. Optimal working posture thanks to sufficient legroom. INDIVIDUAL COLOR SELECTION FOR YOUR UPHOLSTERY A wide choice of colours! DKL imitation leather is biocompatible and complies with the DIN EN ISO 10993 standard.
