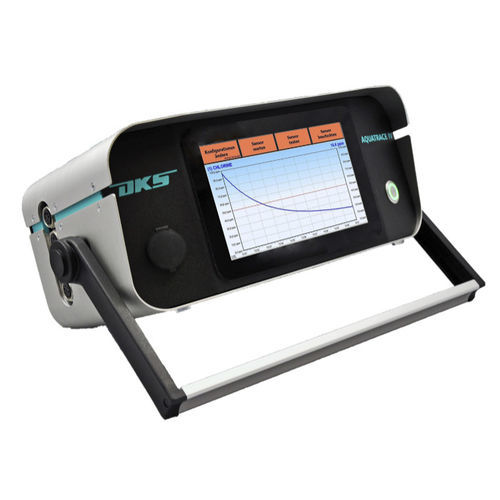

Humidity analyzer AQUATRACE® IV Typ A

calibrationfor environmental analysisautomatic

The AQUATRACE® - IV Type - A can be used either as a battery-operated measuring device for mobile trace moisture measurement in gases or with power supply. AQUATRACE® - IV-family is supplemented by the AQUATRACE® -IV Type - A, a portable cordless tool with integrated power supply. After separation from the power, the device can work at least 2 hours without external power source. Assuming that the sensor coating is carried out in network operation The AQUATRACE® - IV Type T location-independent and flexible to use. Measuring device for mobile trace moisture measurement in gases. AQUATRACE® - IV-family is supplemented by the AQUATRACE® -IV Type T, a portable Analyzer but without battery. - Technical specifications Performance specifications Measuring range: 0-2000 Vppm, dew point –100 ° C - 20 ° C, ranges deviating from the standard on request Accuracy: +/- 5% of the displayed value, at least 0.4 ppmV | optional 0.04 ppmV Response time: dry to wet: T90 <5 sec; Wet to dry: T90 <15 min Repeatability +/- 0.1 ppmV | optional +/- 0.02 ppmV Calibration traceable calibration certificate, n-point calibration/adjustment (optional) Display Touchscreen 800x480 pixels, color Every measuring channel Lower detection limit 0.1 ppmV | optional: 0.01 ppmV Measuring range 0-2000 Vppm Displayed value(s) In ppmV or Tp ° C (adjustable) Transmission rate 32 bit Data log rate min. 2 s max 10 min Sensor detection automatically Automatic sensor test Automatically (fuction test) Analog output 4-20 mA (freely scalable) Alarm output limit value - programmable as floating changeover contact Channel relay 4 channel relays according to NAMUR (F + S; C + M),
