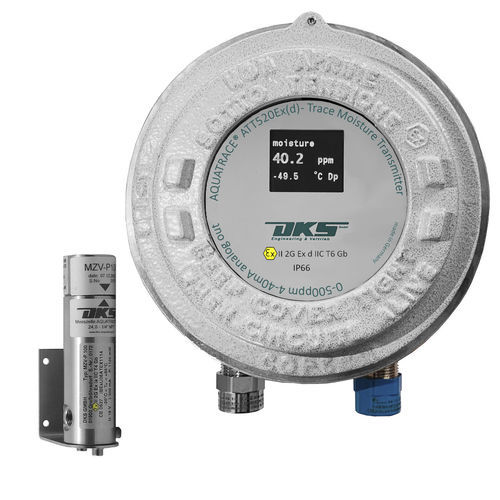

Humidity analyzer The AQUATRACE® ATT520Ex (d)

for environmental analysis

With our ATT520Ex we present our new ATT520 trace moisture transmitter in a flameproof enclosure. He works on the basis of our proven P2O5 sensors and can therefore be used in all gases, including chlorine gas. The large number of design variants enables precise adaptation to your task. In the range of 0 - 500 ppmV | 0 - 20,000 ppbV (depending on the measuring range variant) you get an analog output signal of 4 - 20 mA or 0-10V. The transmitter can be adapted or configured to the specific application conditions via a serial interface. Technical specifications: Product: - AQUATRACE® ATT520Ex - Ex (d) -Transmitter for the determination of trace moisture in the measuring range 0-500 ppm V | 0-20,000 ppb - ATEX certified Ex II 2G Ex d IIC T6 and or IECEx Performance specifications Measuring range: - 0-500 ppm V | 0-20,000ppb, dew point –100 ° C - 20 ° C, ranges other than standard available on request Accuracy: - PPM: +/- 2% of the display value, at least 0.4 ppm V | PPB: +/- 2% of the display value, at least 10 ppb V Response time: - Dry to wet: T90 <5 sec; Wet after dry: T90 <15 min Repeatability: - PPM: +/- 0.01 ppm | PPB: +/- 5 ppb Calibration: - traceable calibration certificate Display: - 1.8 "TFT LCD 128x160 pixels, white Electrical specifications Output signal: - 4-20 mA or 0-10 V, RS232, RS485 Display output: - [ppm], [ppb] and [° C dp] (only via digital interface) Scaled range analog output: - PPM: 0-500 Vppm | PPB: 0-20,000 ppb Power supply: - 19-26 V DC Power consumption: - maximum 0.4 A. conformity - CE, EN 61000-4-2, EN 61000-4-3, EN 61000-4-4, EN 55011, EN ISO 12100, ATEX and IECEx certified
