Purity analyzer MED-O2

oxygencarbon dioxidecarbon monoxide

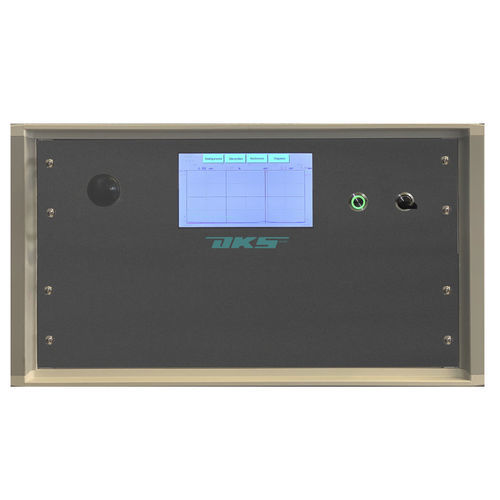

Medical oxygen analyzer CombiSens Analyzer MED-O2 The CombiSens Analyzer MED-O2 model is suitable for the analysis of medical oxygen in accordance with the guidelines of the European Pharmacopoeia. We combine paramagnetic oxygen (99.99%), coulometric P2O5 moisture and IR CO and CO2 analyzers with a convenient operating concept and measurement data visualization, digital flow meter and memory for up to 6000 limit value alarms in just 6 height units. This makes the CombiSens Analyzer MED-O2 the only standard analyzer for medical oxygen available on the market that fully meets the requirements of the European Pharmacopoeia. With pressure-compensated paramagnetic oxygen sensor, P2O5 analyzer for residual moisture monitoring and infrared measurement for CO and CO2 The gas analysis system described below is designed for installation in a safe area and under normal air conditions. It provides continuous and simultaneous concentration measurement of the following compounds: Traces of carbon monoxide (CO) 0-50 ppmV Traces of carbon dioxide (CO2) 0-500 ppmV Oxygen (O2) purity 95-100 vol% with paramagnetic pressure compensated oxygen sensor Traces of moisture (H2O) 0-500 ppmV with AQUATRACE® 19" rack 0-500 ppmV Background gas: oxygen This system contains all the necessary equipment for sampling, conditioning and analysis of the gases listed above. Particularly suitable for quality testing of medical oxygen. The following measurement methods are used to determine the concentration of each compound: CO ppmV GfX Infrared Gas Analysis CO2 ppmV GfX Infrared Gas Analysis O2 Vol% Pm Paramagnetic Gas Analyzer (With Atmospheric Pressure Compensation)
