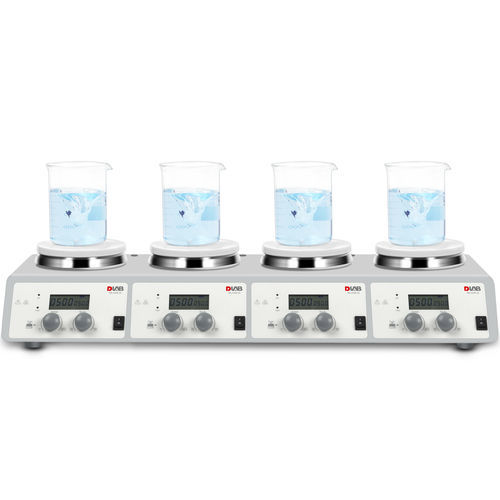

Magnetic laboratory stirrer MS-H340-S4

vibratingdigitalfor general purposes

It is widely used in chemical synthesis,physical and chemical analysis, bio-pharmaceuticals etc. Features • Independent heating and stirring control • LCD display shows actual temperatures and speed • Brushless DC motor enables more powerful speed control • External temperature sensor(PT1000) with accuracy at 0.2℃ • Overheating protection temperature at 420℃ • Stainless steel work plate with ceramic coating provides good chemical-resistant performance • A wide variety of accessories are available Specifications Work plate dimension Φ135mm（5inch） Plate material Stainless steel with ceramic coating Motor type Brushless DC motor Motor rating input 1.8W×4 Power 515W×4 Heating Power 500W×4 Voltage 100-120V,60Hz; 200-240V,50 Hz Stirring positions 4 Max. stirring quantity of single position (H2O) 10L Max. magnetic bar 40mm Speed display LCD Temperature display LCD Control accuracy of sensor[rpm] ±20 Over temperature protection 420°C Temperature display accuracy ±0.1°C External temp. sensor PT1000（Accuracy±0.2℃） IP Protection class IP21 Dimensions[WxDxH] 698×270×128mm Weight 9.5kg Permissible ambient temperature 5～40°C Permissible relative humidity 80%RH
