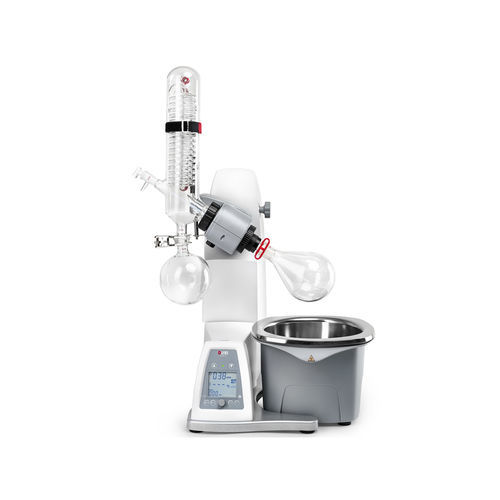

Laboratory evaporator RE100-Pro

rotary

• Digital display of both rotation speed and heating temperature allows for optimal control of all distillation processes • Automatic motor lift releases the evaporating flask to a safe position in case of power failure • 5L heating bath with wide temperature range from room temp. to 180°C. Water/oil heating mode can be changed only through a switch. • Overheating protection temperature at 220°C • Speed range from 20 to 280rpm, and interval operation in clockwise and anticlockwise directions for drying process • Patented condenser (cooling surface 1700cm²) with excellent cooling effect • Ejection mechanism ensures easy removal of evaporating flask • Patented double spring sealing ring which is made of PTFE provides an excellent sealing performance • Remote function provides PC control and data transmission Specifications Motor Type Brushless DC motor Display LCD(speed,temperature, time) Clockwise and Anti-clockwise Yes Control Accuracy water: ±1℃ oil: ±3℃ Heating Power 1300W Stroke Displacement automatic 150mm Timer Yes Time Setting Range 1-999min Dimension[D×W×H] 465×457×583mm Weight 15kg Permissible Ambient Temperature 5-40℃ Permissible Relative Humidity 80%RH Protection Class IP20 Weight 2.8kg Protection class IP21 USB Interface Yes Voltage/Frequency 100-120/200-240V 50/60 Hz Power 1400 W
