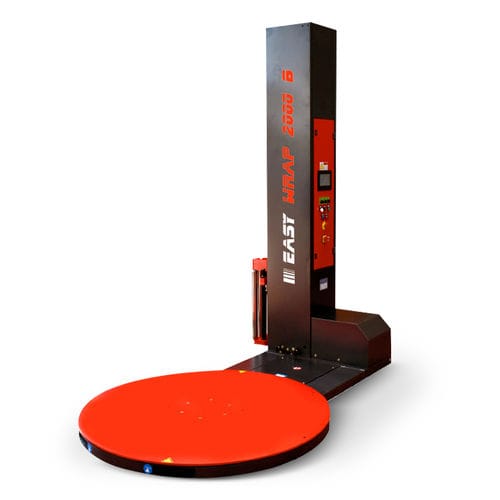

Automatic palletizer Easy Wrap 2000

The Easy Wrap 2000 A is a semi-automatic machine for wrapping palletised loads with stretch film: with the possibility of adjusting film tensioning by mechanical brake, gradual start of the table by inverter, manual or automatic work cycle, possibility of adjusting the number of wraps on the lower and upper part of the pallet. Technical characteristics Machine structure in painted sheet steel Hinged column at the base for quick, easy installation Transmission of reel-holder carriage by chain Table diameter 1500 mm Working height 2400 mm Ambient conditions humidity: ≤ 90\% Working temperature: from + 0°C to + 40°C Possibility of lifting the machine from both front and rear with the forklift Provision for pneumatic press Inverter for progressive table starting and indexed stopping Digital adjustment of wraps at the base of the pallet Digital adjustment of wraps at the top of the pallet Rotation speed adjustable from 0 to 10 rpm. Carriage up and down speed Photocell reading delay Buttons for man/aut machine management Up and down cycle Up only cycle Feeder cycle Max.film reel height : 500 mm Max. reel diameter: 280 mm Max pallet dimensions : 800 x 1200 x 2200 mm Table capacity : 1500 Kg Machine weight : 650 Kg Installed power : 1 kW Machine dimensions : 2715 x 1515 x 2600 mm Machines manufactured according to CE standards
